Aleum USA
5 in. Ductile Iron Grooved Butterfly Valve Lever Lock 8200 Series 300 PSI
- SKU:
- BFO8200LG5
- MPN:
- 8200LG5
- Availability:
- Available
- Weight:
- 22.00 LBS
Description
View Drawing & Technical/Material Specifications

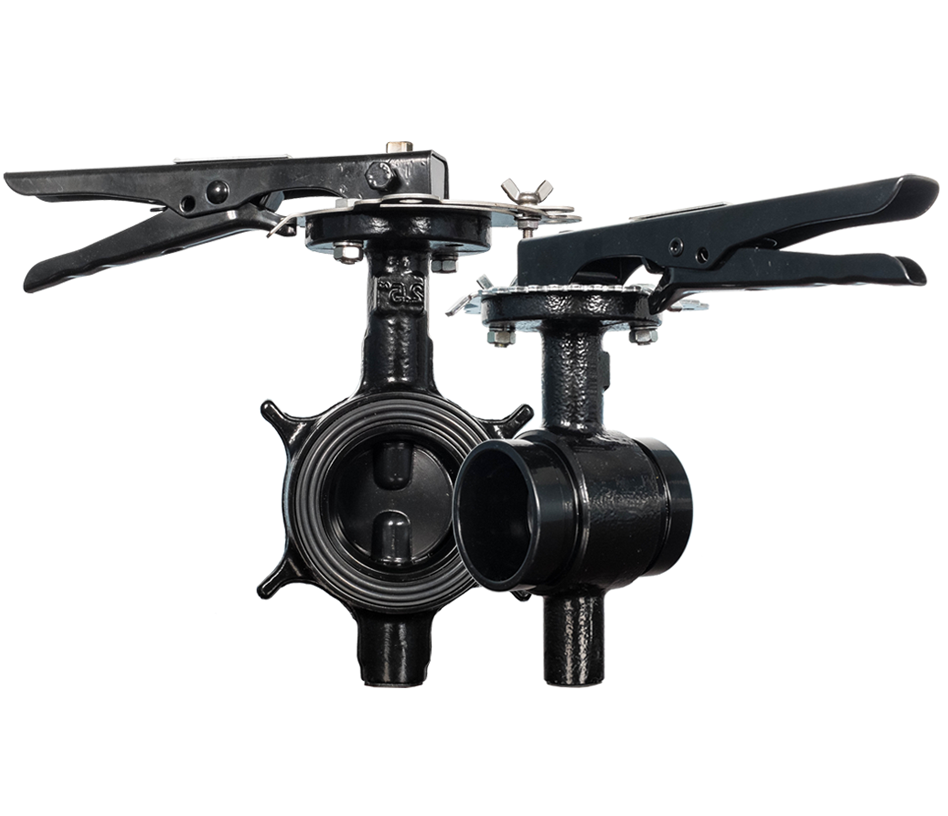

The 8200LG butterfly valve features a rugged ductile iron body with grooved ends (AWWA C606-14). The ductile iron disc is encapsulated in EPDM rubber which provides a double seal interface with the stem. EPDM O-Rings are used integrally on the stem to assure a leak-free performance. The lever handle is mounted with a positioning plate providing 10-degree or infinitely-variable positioning, with memory; valuable when throttling or balancing.
The 8200LG is bubble-tight at 300 psi and rated for dead-end service in all sizes 2" - 12": max test pressure to 450 psi.
- Connections: Grooved Ends (AWWA C606), Wafer Type (ANSI Class 125)
- 10-Position Lever Lock Handle
- Sizes: 2" , 2-1/2" , 3" , 4" , 6" , 8
- Max. Working Pressure: 300 PSI
- Max. Test Pressure: 450 PSI
- Application: Indoor and Outdoor Use
MARKETS
| Mining | Civil Construction | OEM |
|---|---|---|
| Tunnel Boring | Dewatering | Agriculture |
| Directional Drilling | Temporary Piping | Industrial |
| HVAC (where insulation up to 1” is required) | Oil Field Production |
Additional Information
Size (inches): |
5.00 (5") |
Category Type: |
Industrial Valves |
End Connection: |
Grooved |
Lock Type: |
Lever Lock |
Pressure Rating (psi): |
300 |
Product Type: |
Butterfly Valve |
Series: |
8200 |
Weight (lbs): |
22 |
Additional: |
From Import |
