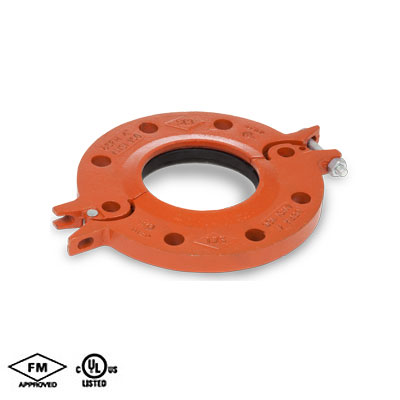

8 in. Hinged Flange Adapter - EPDM Gasket - Orange Paint Housing - 65FH Grooved Fire Protection Coupling - UL/FM

SCI Grooved Catalog SCI Grooved FM Approvals Summary SCI Grooved Fittings UL Approvals

Grooved Pipe Fitting Technical Specifications:

• Maximum working pressure 300 psi (20.7 bar) depending on flange size and schedule of pipe
• 3/8" x 2-3/4" latch bolt included
• SCI does not provide flange bolts
• All bolts and gaskets identified by SCI logo
• 100% magnetic particle inspection of each bolt
• Each bolt has a minimum tensile strength of 110,000 psi
• Gasket Grade E - EPDM (green stripe) -30 °F(-34°C) to +230 °F(+110°C)
• Gasket Grade T - Nitrile (orange stripe) -20 °F(-29°C) to +180 °F(+82°C)
• Ductile iron housings conform to ASTM A-536 Grade 65-45-12
• Groove dimensions to AWWA C-606
• Orange enamel paint Hot dipped galvanized ASTM A-153
• Smith-Cooper Warranty only applies to assemblies made with housings, gaskets and bolts carrying the SCI logo
