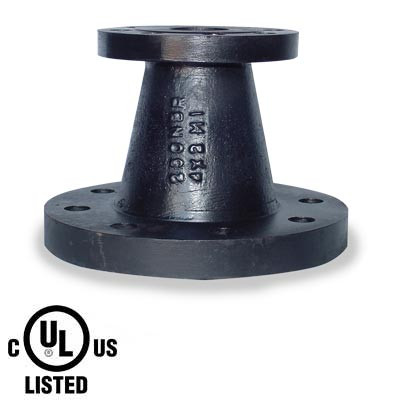

Name: 6 in. Flanged End x 4 in. Flanged End - Concentric Reducer - Class 250# Ductile Iron Flanged Pipe Fitting - UL Listed
Brand: BFO Select
SKU: BFO38CR2060040
Price: 2198.51 USD
Availability: InStock

6 in. Flanged End x 4 in. Flanged End - Concentric Reducer - Class 250# Ductile Iron Flanged Pipe Fitting - UL Listed

(No reviews yet) Write a Review

SKU:

BFO38CR2060040

Availability:

Available

Weight:

74.06 LBS

Description
Additional Information
0 Reviews
Reviews
Questions & Answers

Description

Material Specifications:

Ductile Irong Flanged Fittings are UL Listed through 12"
Ductile iron conforms to ASTM A536
Flanged fitting dimensions conform to ASME B16.42 and ANSI/AWWA C110/A21.10
Manufacturing facility is ISO 9001:2008
Galvanizing available upon request
Fire protection and general waterworks

Shipping:

Individual items 0 - 150 lbs qualify for free shipping
View complete list of shipping terms here

Dimensions / Drawings

Ductile Iron Flanged Fittings Data Sheet

Size	Flange dimension (mm)		Bolting
Size	D	C (min)	D1 (PCD)	D. of bolt hole	Bolt no.	Bolt size
2" / DN50 / 60.3mm	165	22.4	127	3/4"	8	5/8"
2-1/2" / DN65 / 73.0mm	191	25.4	149.2	7/8"	8	3/4"
3" / DN80 / 88.9mm	210	28.4	168.3	7/8"	8	3/4"
4" / DN100 / 114.3mm	254	31.8	200.0	7/8"	8	3/4"
5" / DN125 / 141.3mm	279	35.1	235.0	7/8"	8	3/4"
6" / DN150 / 168.3mm	318	36.6	269.9	7/8"	12	3/4"
8" / DN200 / 219.1mm	381	41.1	330.2	1"	12	7/8"
10" / DN250 / 273.0mm	445	47.8	387.4	1-1/8"	16	1"
12" / DN300 / 323.8mm	521	50.8	450.8	1-1/4"	16	1-1/8"
14" / DN350 / 355.6mm	584	53.8	514.4	1-1/4"	20	1-1/8"
16" / DN400 / 406.4mm	648	57.2	571.5	1-3/8"	20	1-1/4"
18" / DN450 / 457mm	711	60.5	628.6	1-3/8"	24	1-1/4"
20" / DN500 / 508mm	775	63.5	685.8	1-3/8"	24	1-1/4"
24" / DN600 / 610mm	914	69.9	812.8	1-1/2"	24	1-1/2"

View AllClose

Additional Information

Size (inches):	6.00 (6")
Material Type:	Ductile Iron
Product Type:	Concentric Reducer
Category Type:	Pipe Fittings
Pressure Rating (psi):	250
End Connection:	Flanged
Reducing Size (inches):	4"
Weight (lbs):	74.06
Additional:	From Import
