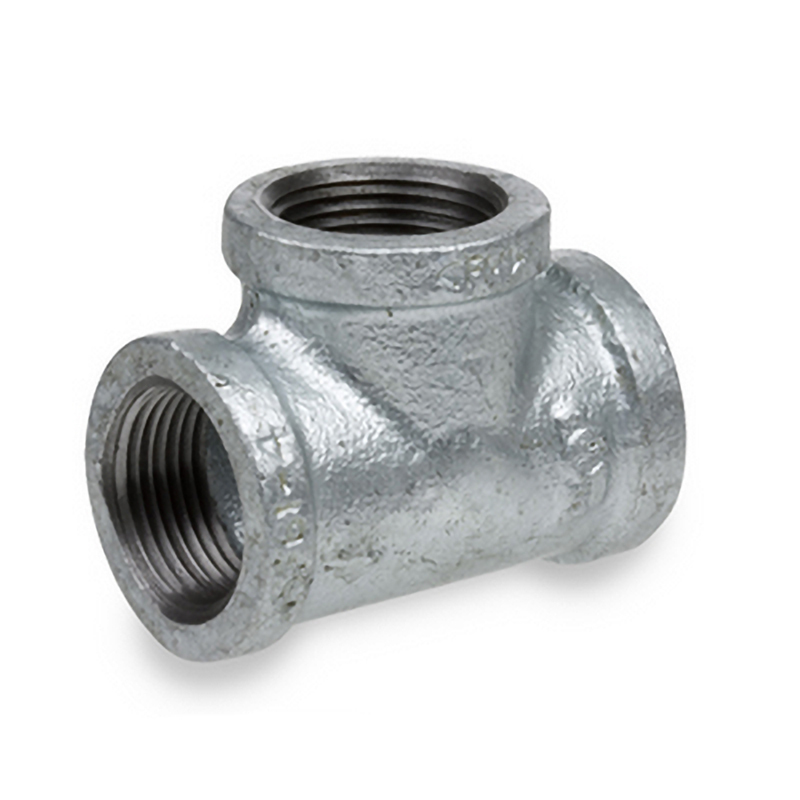

2 in. NPT Threaded - Straight Tee - 150# Galvanized Malleable Iron Pipe Fitting - ASTM A197, UL/FM

Straight Female Tees - 150# ASTM A917 Galvanized Malleable Iron Pipe Fittings

• Malleable Castings conform to ASTM A197
• Hot-Dipped Galvanized Fittings conform to ASTM A153
• Malleable Fitting Dimensions conform to ASME B16.3
• Malleable Bushings, Plugs and Locknuts conform to ASME B16.14
• Malleable Unions conform to ASME B16.39
• NPT Threads on all fittings conform to ASME B1.20.1
• Class 150 fittings are UL listed and FM approved at 300psi.
• Class 300 fittings are UL listed.
• Manufacturing Facility is ISO Certified
• Galvanized Fittings are approved to ANSI/NSF 61-4 Annex G and CA AB1953 (<0.25%Lead)
• Country of origin covered is Thailand & China

NPT Threaded - ASME B1.20.1
Female x Female x Female NPT (all end connections are the same size)

Yes. ANSI/NSF 61-4 Annex G and CA AB1953 set standards for low-lead content in plumbing materials, specifically requiring lead content to be less than 0.25% by weight. Compliance with these standards ensures the fittings meet the criteria for being considered lead-free under relevant regulations, such as those for potable water systems in the U.S.

-20° to 350° deg F

Saturated steam 150 PSI @ 350°F;
Max pressure 300 PSI @ 150° F

Use with air, water, oil, natural gas, steam, potable water, residential plumbing, commercial & institutional plumbing

Class 150# pipe fittings are UL Listed and FM Approved @ 300 PSI
ASTM A197 / ASME B16. / ASME B16.14 / ASME B16.39 / ASME B1.20.1
Galvanized Fittings are approved to ANSI/NSF 61-4 Annex G and CA AB1953 ( <0.25%Lead)

COC -Yes
MTR - No (if required - see our domestic line from Anvil)

Country of Origin:
From Import - China or Thailand (subject to change)

Dimensions / Datasheet
