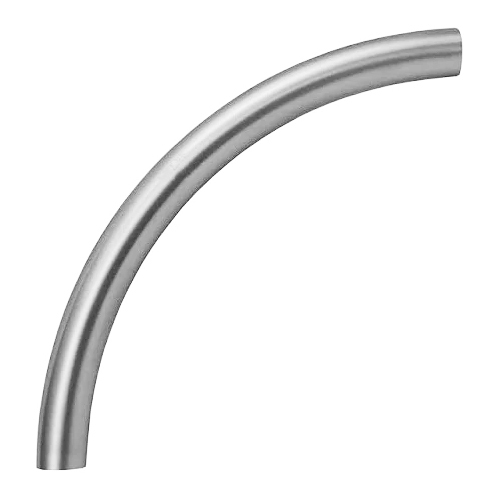

4 in. Tube OD x 18 in. CLR - Polished 90 Degree Sweep Elbow - 2SXL - 316L Stainless Steel Sanitary Butt Weld Fitting (3-A)

Polished 90° Weld Sweep Elbow (2SXL) - 3A Sanitary Stainless Steel Weld Fitting

Used to connect separate tubing while accommodating existing structures. Sweep elbows are designed for smoother transitions and reduced turbulence in fluid flow. Stainless steel sanitary polished weld fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required.

CLR: CLR stands for "Centerline Radius." This is the radius of the curve of the elbow, measured from the center of the pipe to the center of the arc. A 12-inch CLR indicates a long, gradual sweep rather than a tight, short-radius bend. In sanitary applications, a larger CLR (like 12 inches) is often used to ensure smoother flow and to accommodate obstacles or specific design needs in a piping system.

• Tube OD Size Range: 1-1/2" through 6"
• Alloys Available: 304 & 316L
• 3A Sanitary Certified
• Surface Finish: 32Ra ID/OD
• Full Material Traceability (Heat#s/MTRs/3-A Sanitary)
• 4" Tangents

Tube OD Butt Weld End x Tube OD Butt Weld End

• 1/2" through 3" = 0.065"
• 4" & 5" = 0.083"
• 6" through 12" = 0.109"

Surface Finish: 32Ra ID/OD
Welded

3-A Sanitary Certified

COC -Yes
MTR - Yes (Material Test Report with Traceable Lot Number)
3-A Sanitary Certificate - Yes

Country of Origin: Import - China
HTS Code: 7307.23.0090

Product Resource Downloads:

• Wayland Catalog (Sizing & Dimensions)
• Clamp Gasket Sizing
• Compound Selection

Certifications:

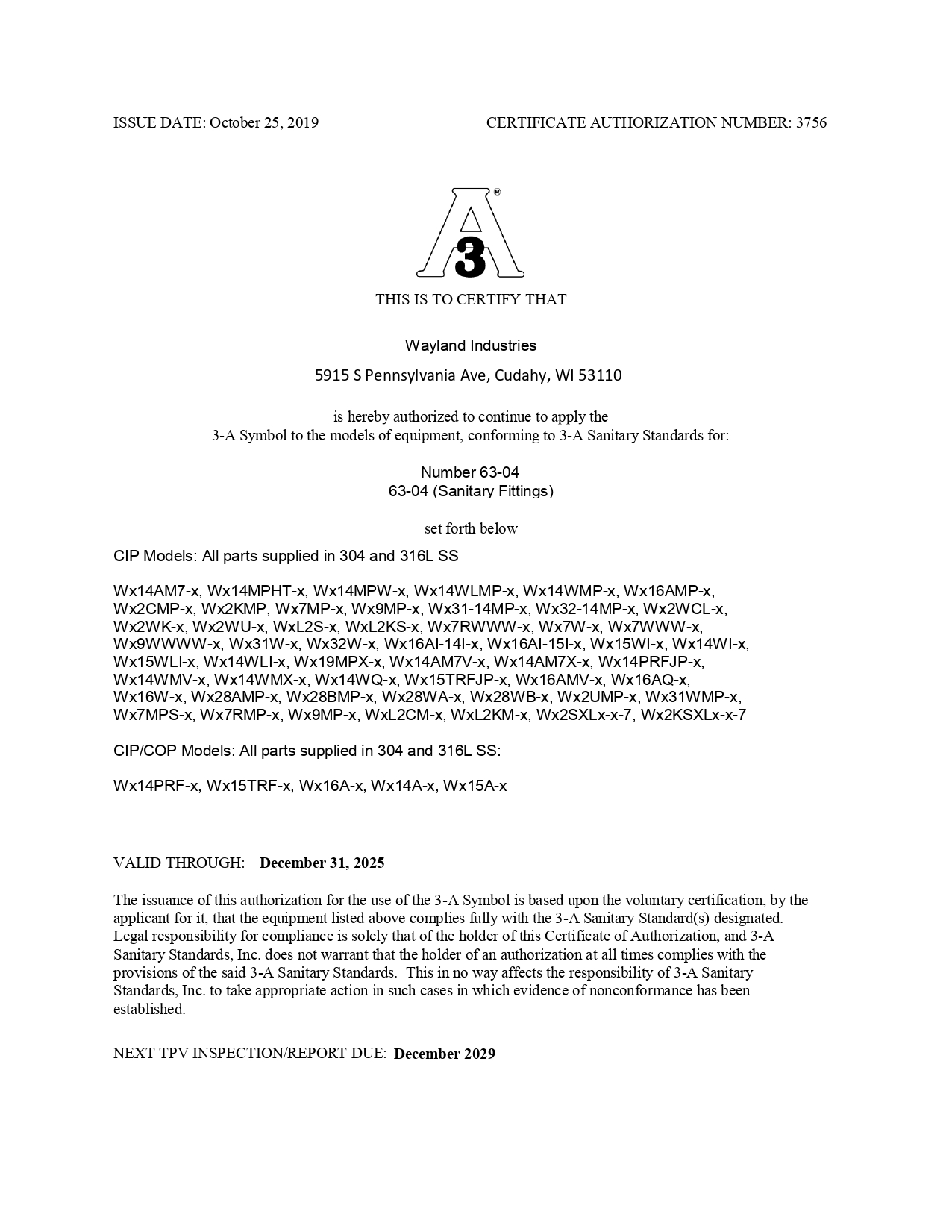

• 3A Certificate - Fittings

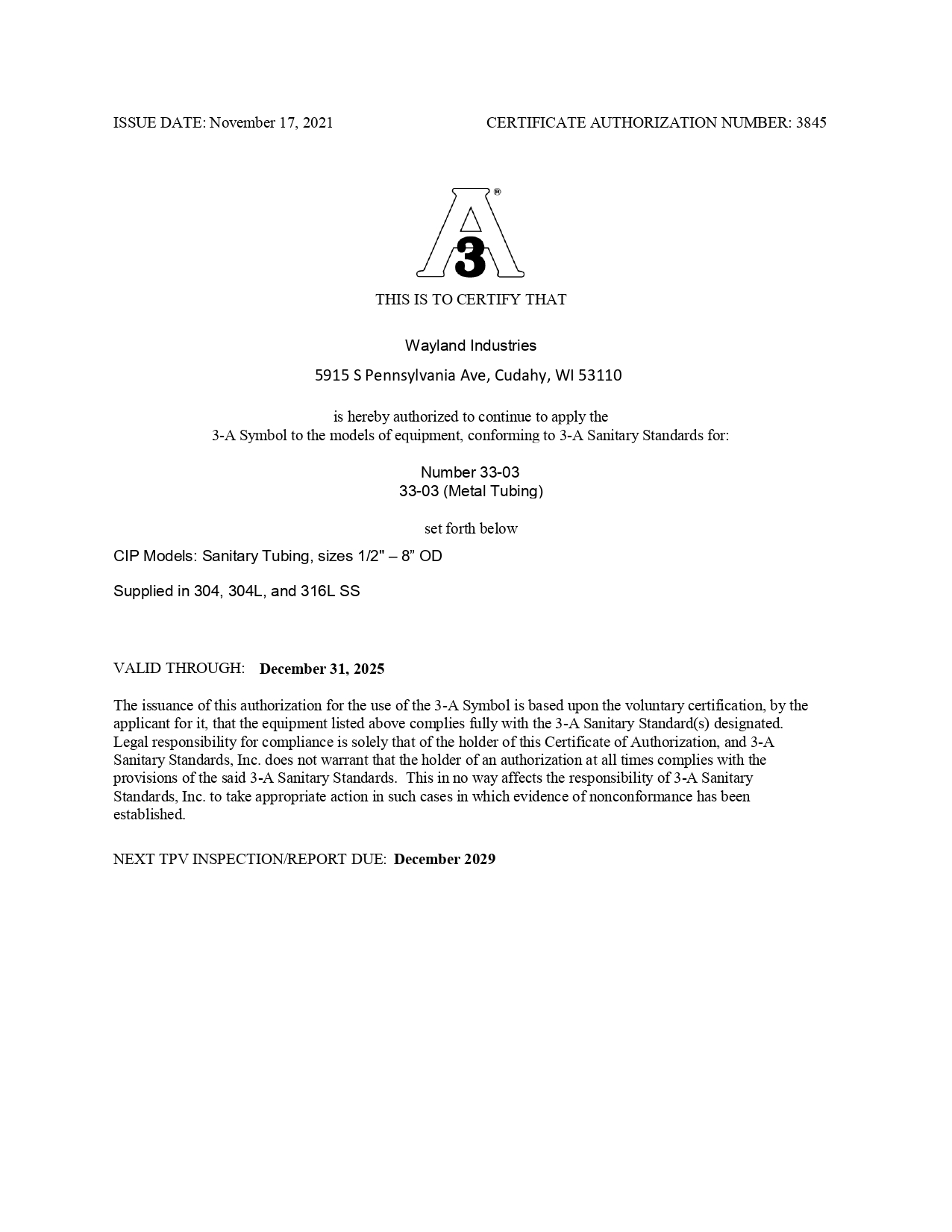

• 3A Certificate - Tubing

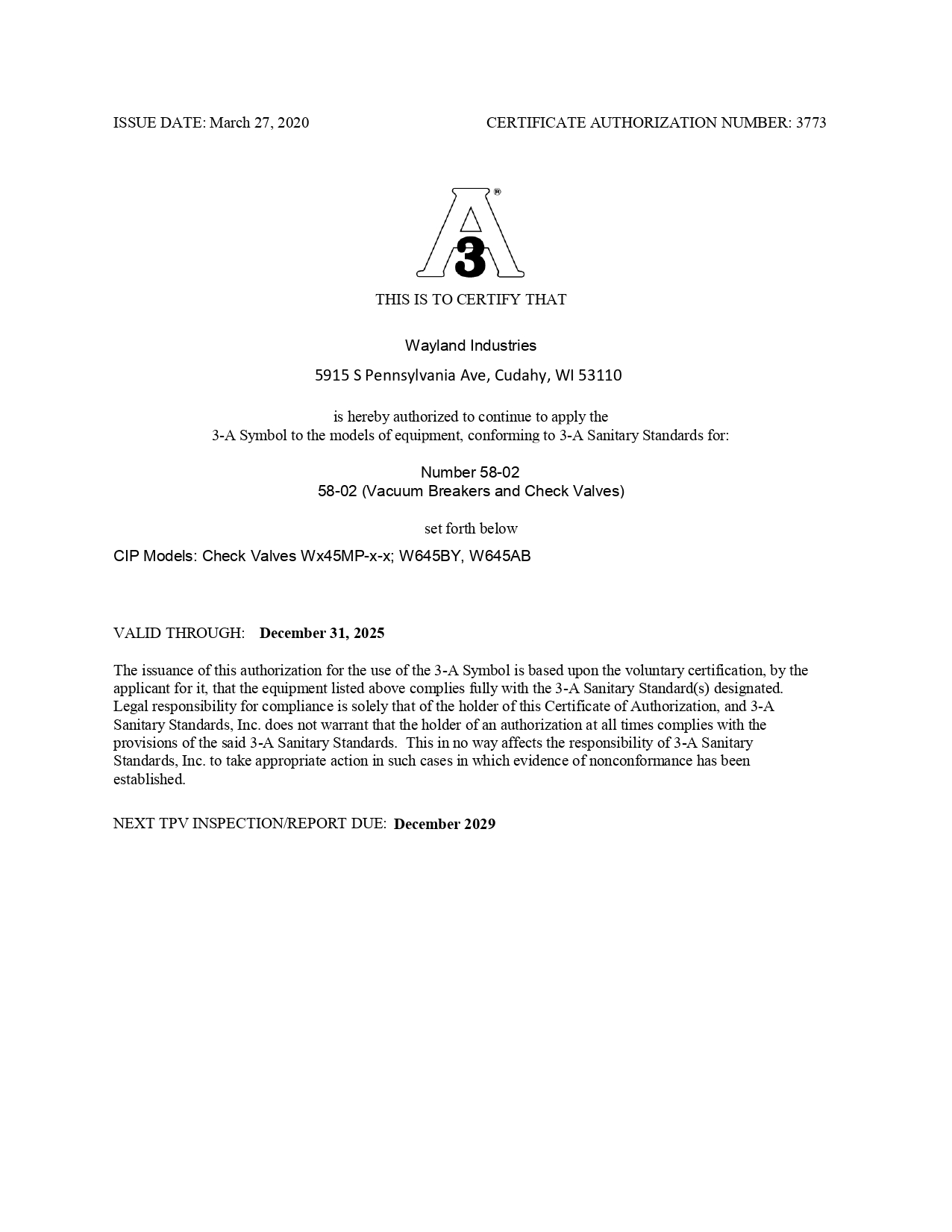

• 3A Certificate - Check Valves

Traceability: All products are marked with logo, size, alloy, part number, heat number, country of origin and mill order number for complete traceability of all 304 and 316L alloy parts used in manufacturing. Material Test Reports (MTR): All gaskets and seals are FDA certified.

Wayland Industries provides the highest quality stainless steel sanitary fittings, valves, and tubing to distributors throughout North America. Our products are certified to 3-A sanitary standards. All Wayland products are produced by ISO 9001 certified suppliers. From manufacturing to final packaging, our suppliers' rigid quality control systems ensure Wayland Industries products always comply to our industry's highest specifications.
