BFO Select

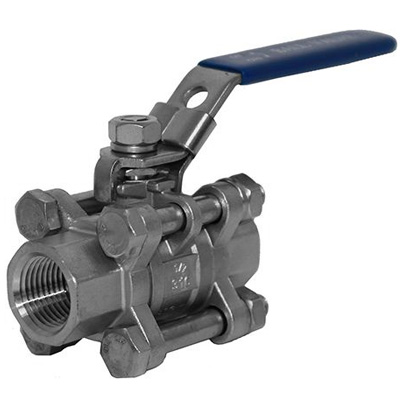

4 in. NPT Threaded - Full Bore - 1000 PSI - 316 Stainless Steel 3 Piece Ball Valve
(No reviews yet)
Write a Review
- SKU:
- 93-X
- Availability:
- Available
- Weight:
- 46.19 LBS
Description
Applications / Description
1000 PSI 3 Piece Full Bore Stainless Steel Ball Valves Features:
- Suitable Mediums :¬?Water, Oil and Gas and so forth... (WOG)
- Seals:¬?Teflon (PTFE)
- Threads:¬?Female NPT (National Pipe Thread)
- Port:¬?Full Bore Ball Valve (Pipe ID remains the same)
- Body Material:¬?¬?Wetted parts Stainless Steel 316
- Handle:¬?Designed to be Blow-Out Proof¬?
- Locking Device:¬?Handle can be locked open or closed (removeable)
Valve Advantages
- The main advantage of a 3 piece valve is its ability to be easily taken apart for cleaning and servicing, In fact they were¬?designed so that they can be completely disassembled for cleaning.
- The valve threaded ends¬?can remain threaded into the pipe and the center portion can be removed and service, without having to remove the entire valve from the application.
- They¬?can be reoriented in increments of 90 degrees of rotation for easy access on any pipe.
- ¬?Can be used as an upgrade to the 2 piece ball valve.
Operation
Activated by a simple quarter¬?turn (90 degrees) of the handle from "on" ,inline with valve body to¬?"Off" , perpendicular to flow.
Maximum Operating Pressure
1000 PSI (6.4MPa) Making them suitable for most applications.
Operating Temperature Range :
14°¬?to 248°(-10°C~120°C)
Shell Test
9.6MPa
Seat Test
0.6MPa
Material Components:
All wetted parts are Stainless¬?Steel¬?316 and PTFE (Teflon) seals. This makes the valve suitable for any material compatible with both PTFE and Stainless Steel. So as well as being¬?high heat and chemical resistant, this valve also has good anti-corrosive qualities
Valve Body
Stainless Steel 316 (CF8M)
Dimensions / Specifications
Additional Information
Size (inches): |
4.00 (4") |
Material Type: |
316 Stainless Steel |
Pressure Rating (psi): |
1000 |
Product Type: |
Ball Valve |
Category Type: |
Industrial Valves |
Style: |
3 Piece |
End Connection: |
NPT |
Port Type: |
Full Bore |
Weight (lbs): |
46.19 |
Additional: |
From Import |
