BFO Select

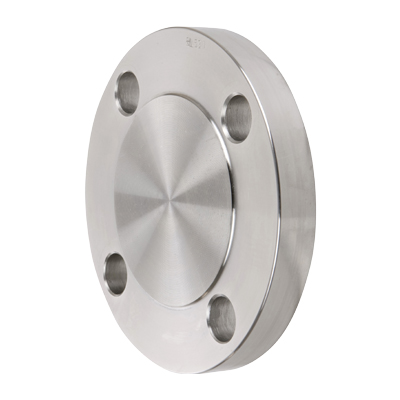

1/2 in. Pipe Size - Blind Flange - 4 Bolt Holes - 150# ANSI Raised Face (RF) - 304/304L Stainless Steel Forged Flange

(No reviews yet) Write a Review
SKU:
5501-D
Availability:
Available
Weight:
2.00 LBS
$54.31

Description


Material Specifications:

150# ANSI RAISED FACE (RF) BLIND FLANGES - STAINLESS STEEL

Blind flanges - also known as blank flanges - seal the end of a pipe system or pressure vessel opening. These blind flanges all have a raised face. Type 304 stainless steel, a chromium-nickel material, resists corrosion caused by water, heat, saltwater, acids, minerals, and peaty soils. Type 316 stainless steel has a higher nickel content than 304 stainless, plus molybdenum, for even greater corrosion resistance.

  • Raised Face (RF)
  • Forged stainless steel material conforms to ASME A182
  • Forged stainless steel flange dimensions conform to ASME B16.5
  • NPT Threads conform to ASME B1.20.1
  • 304/304L & 316/316L Stainless Steel Available
End Connection:
Blind
Face:
Raised Face - 1/16"
Applications:
For use with class 150#/schedule 40
Standards Met:
ASME A182 (Forging); ASME B16.5 (Dimensions)
COC Available:
COC - Yes
MTR - Yes
Critical Part Data
Nominal Pipe Size (NPS)
(in)		 Outside Diameter A
(in)		 Thickness
B
(in)		 Raised Face Diameter
C (in)		 Bolt Circle
(in)		 Bolt Hole
Diameter
(in)		 Number of Bolt Holes
1/2 3.50 0.44 1.38 2.38 0.62 4
3/4 3.88 0.50 1.69 2.75 0.62 4
1 4.25 0.56 2.00 3.12 0.62 4
1-1/4 4.62 0.62 2.50 3.50 0.62 4
1-1/2 5.00 0.69 2.88 3.88 0.62 4
2 6.00 0.75 3.62 4.75 0.75 4
2-1/2 7.00 0.88 4.12 5.50 0.75 4
3 7.50 0.94 5.00 6.00 0.75 4
4 9.00 0.94 6.19 7.50 0.75 8
5 10.00 0.94 7.31 8.50 0.88 8
6 11.00 1.00 8.50 9.50 0.88 8
(150# Blind Flanges up to 6")
Additional:
Country of Origin:
From Import (Vietnam, S. Korea, Thailand, Other, subject to change)
PDF downloadsPDF/ Specs / Brochure
PDF downloads Blind Flanges Catalog - Dimensions & Bolt Holes
View AllClose

Additional Information

Size (inches):
.500 (1/2")
Material Type:
304/304L Stainless Steel
Product Type:
Blind Flange
Category Type:
Pipe Flanges
Pressure Rating (psi):
150
Number of Bolt Holes:
4
Style:
Raised Face
Specifications or Standards:
ANSI
Specifications or Standards:
ASME A182
Specifications or Standards:
ASME B16.5
Weight (lbs):
2
Additional:
From Import
