BFO Select

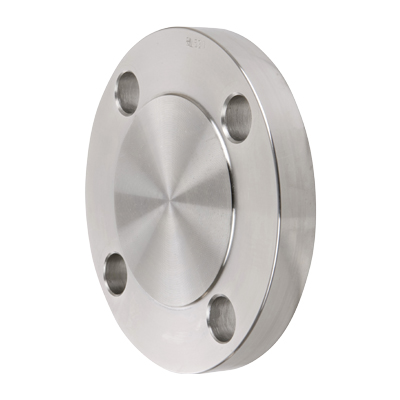

2-1/2 in. Pipe Size - Blind Flange - 4 Bolt Holes - 150# ANSI Raised Face (RF) - 316/316L Stainless Steel Forged Flange
- SKU:
- 5501-V
- Availability:
- Available
- Weight:
- 7.00 LBS
Description
150# ANSI RAISED FACE (RF) BLIND FLANGES - STAINLESS STEEL
Blind flanges - also known as blank flanges - seal the end of a pipe system or pressure vessel opening. These blind flanges all have a raised face. Type 304 stainless steel, a chromium-nickel material, resists corrosion caused by water, heat, saltwater, acids, minerals, and peaty soils. Type 316 stainless steel has a higher nickel content than 304 stainless, plus molybdenum, for even greater corrosion resistance.
- Raised Face (RF)
- Forged stainless steel material conforms to ASME A182
- Forged stainless steel flange dimensions conform to ASME B16.5
- NPT Threads conform to ASME B1.20.1
- 304/304L & 316/316L Stainless Steel Available
MTR - Yes
| Nominal Pipe Size (NPS) (in) | Outside Diameter A (in) | Thickness B (in) | Raised Face Diameter C (in) | Bolt Circle (in) | Bolt Hole Diameter (in) | Number of Bolt Holes |
| 1/2 | 3.50 | 0.44 | 1.38 | 2.38 | 0.62 | 4 |
| 3/4 | 3.88 | 0.50 | 1.69 | 2.75 | 0.62 | 4 |
| 1 | 4.25 | 0.56 | 2.00 | 3.12 | 0.62 | 4 |
| 1-1/4 | 4.62 | 0.62 | 2.50 | 3.50 | 0.62 | 4 |
| 1-1/2 | 5.00 | 0.69 | 2.88 | 3.88 | 0.62 | 4 |
| 2 | 6.00 | 0.75 | 3.62 | 4.75 | 0.75 | 4 |
| 2-1/2 | 7.00 | 0.88 | 4.12 | 5.50 | 0.75 | 4 |
| 3 | 7.50 | 0.94 | 5.00 | 6.00 | 0.75 | 4 |
| 4 | 9.00 | 0.94 | 6.19 | 7.50 | 0.75 | 8 |
| 5 | 10.00 | 0.94 | 7.31 | 8.50 | 0.88 | 8 |
| 6 | 11.00 | 1.00 | 8.50 | 9.50 | 0.88 | 8 |
From Import (Vietnam, S. Korea, Thailand, Other, subject to change)
PDF/ Specs / BrochureAdditional Information
Size (inches): |
2.50 (2-1/2") |
Material Type: |
316/316L Stainless Steel |
Product Type: |
Blind Flange |
Category Type: |
Pipe Flanges |
Pressure Rating (psi): |
150 |
Number of Bolt Holes: |
4 |
Style: |
Raised Face |
Specifications or Standards: |
ANSI |
Specifications or Standards: |
ASME A182 |
Specifications or Standards: |
ASME B16.5 |
Weight (lbs): |
7 |
Additional: |
From Import |
