BFO Select
4-17/32 in. to 4-13/16 in. OD Range T-Bolt Hose Clamp, Stainless Steel Band, Bolt and Nut
- SKU:
- BFO840-475
- Availability:
- Available
- Weight:
- 0.01 LBS
Description
Nominal Size: 4-3/4"
Purpose: To provide a quick, yet effective means of clamping a variety of fittings to a wide range of hose. T-Bolts can be applied with a standard 7/16 socket wrench. They provide 3600 sealing surface by using a shoe or formed bridge. Services: The T-Bolt clamp is a high strength, reliable clamp with numerous applications in both the commercial and industrial markets including hose and ductwork connections for air, oil, water, other types of low pressure fluid lines, engine air intake, exhaust, hose and filters.
Opens 1/16" above and tightens 1/8" smaller then nominal I.D. for a total of 3/16" range for clamps sizes 150 through 250.
Opens 1/16" above and tightens 7/32" smaller then nominal I.D. for clamps sizes 256 through 750.
- All designs meet SAE J1508 specifications
- .025 Band Thickness
- 3/4 Wide Band
- Band Material: 301 Series Stainless Steel
- Bolt Material: 304 Series Stainless Steel
- Nut Material: 304 Series Stainless Steel
- Nuts are Self-locking
- Torque Rating 75 in/lb
Additional Information
Material Type: |
Stainless Steel |
Product Type: |
T-Bolt Hose Clamp |
Category Type: |
Hose Clamps |
Weight (lbs): |
0.01 |
Additional: |
From Import |
Reviews
- Highest to Lowest
- Newest to Oldest
- Favorite Reviews
- All Ratings
- 5 ★ Reviews
- 4 ★ Reviews
- 3 ★ Reviews
- 2 ★ Reviews
- 1 ★ Reviews
4-17/32 in. to 4-13/16 in. OD Range T-Bolt Hose Clamp, Stainless Steel Band, Bolt and Nut
Site is easy to use.
Quick and professional service... very knowledgeable and respectful
Nice easy site
Questions & Answers
Popular Questions
The order minimum was put in place due to the increased costs of processing the massive amount of very small orders we were receiving.
Instead of raising prices on each item, we instilled a $40 dollar order minimum on all online purchases in an effort to keep prices stable and…
See full answer »
Tax exempt customers can safely and securely submit their documentation here.
Follow the instructions on the form. If the documentation is received during operating business hours (Monday-Friday 8 AM to 4:30PM EST) our team…
See full answer »
All ground orders are processed in the order in which they are received. If there is an extensive que at one warehouse - our team will route that order to ship from the warehouse with stock and a smaller que. If lead time is essential - we do offer UPS expedited shipping options at checkout. Orders received during the week after 4:30PM, on weekends and holidays are processed and sent to the warehouse on the next available… See full answer »
BFO does ship internationally, however terms and lead times may apply.
Our standard shipping method is UPS. Rates provided are UPS per our standard shipping policy.
…
You can view your current rewards balance by clicking here. This will open our rewards panel. You can also navigate to the top of the website on the desktop version and locate the Rewards link > Select Login or Join Rewards in the drop down menu…
See full answer »
Related Products
Related Products

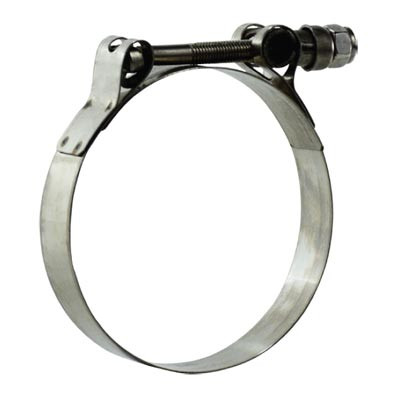

2-17/32 in. to 2-13/16 in. OD Range T-Bolt Hose Clamp, Stainless Steel Band, Bolt and Nut
