Sharpe Valves

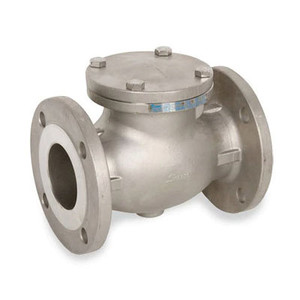

6 in. Flanged End Check Valve - Class 150# - 316 Stainless Steel Swing Check Valve Series 25116
(No reviews yet)
Write a Review
- SKU:
- VSSFCK060A
- Availability:
- Available
- Weight:
- 103.50 LBS
Description
Material Specifications:
- 316 Stainless Steel
- 150# Flanged ends
- Bolted Cover
- Swing Type
- Horizontal or Vertical lines
- Welded Seat
- Renewable Seat Rings
- Steel valves ANSI B16.34
- Face to face ANSI B16.10
- End Flanges ANSI B16.5
- Buttweld ends ANSI B16.25
- Inspection and test API 598
Additional:
Sharpe® metal-seated, cast, flanged swing check valves provide superior performance and reliability in a wide range of applications.
- Uni-directional shut-off
- Size Range: NPS 1/2"-24" (DN 15-600)
- Pressure Class: ASME Class 150; ASME Class 300; ASME Class 600 [See Data Sheet for availability by size & material]
- Body Materials: Cast Steel, Cast Stainless Steel
- Standard: ASME B16.34
- End Connections: Flanged, Butt Weld
The Sharpe Series 25 includes:
- 25114: Class 150, Flanged Swing Check Valve - Cast WCB Carbon Steel
- 25116: Class 150, Flanged Swing Check Valve - Cast CF8M Stainless Steel
- 25314: Class 300, Flanged Swing Check Valve - Cast WCB Carbon Steel
- 25316: Class 300, Flanged Swing Check Valve - Cast CF8M Stainless Steel
- 25614: Class 600, Flanged Swing Check Valve - Cast WCB Carbon Steel
End Connection:
Flanged x Flanged End
PDF / Specs / Brochure:Additional Information
Size (inches): |
6.00 (6") |
Material Type: |
316 Stainless Steel |
Pressure Rating: |
150 |
Product Type: |
Check Valve |
Category Type: |
Industrial Valves |
End Connection: |
Flanged |
Weight (lbs): |
103.5 |
Additional: |
From Import |
