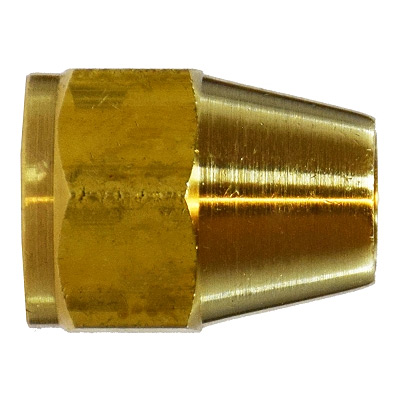

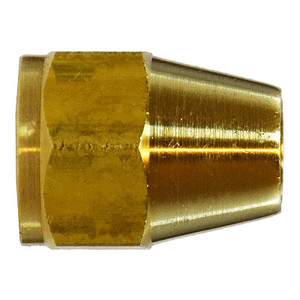

Name: 1/2 UNF x 3/4-16 Short Rod Nut, SAE 010110, SAE 45 Degree Flare Brass Fitting
Brand: BFO Select
SKU: BFO10-019
Price: 3.56 USD
Availability: InStock

1/2 UNF x 3/4-16 Short Rod Nut, SAE 010110, SAE 45 Degree Flare Brass Fitting

(No reviews yet) Write a Review

SKU:

BFO10-019

Availability:

Available

Weight:

0.09 LBS

Description
Additional Information
0 Reviews
Reviews

Description

View Sizing

Install/Assembly Instructions

View Material Specifications & Working Pressures

Typical Application: LP and natural gas, flammable liquids, instrumentation, refrigeration, power steering, hydraulic and pneumatic systems.
Used with: Copper, Brass, Aluminum and Steel Hydraulic Tubing that can be flared
Standards: ASA, ASME, SAE and Military Standards (MS)
Vibration: Good resistance - use longer nut when greater vibration resistance is required
Tolerance: +/-.03 on ll dimensions. Data can change without notice - please inquire when dimensions are critical
Working Pressure Ranges: Temperature and type of tubing used are important factors. However, the following table is a good guide for proper selection. Temperature 73°F with copper tubing:

PSI	Tube OD (inches)	Tube Wall (inches)
2800	1/8	.030
1900	3/16	.030
1400	1/4	.030
1200	5/16	.032
1000	3/8	.032
750	1/2	.032
650	5/8	.035
550	3/4	.035
450	7/8	.035

View AllClose

Additional Information

Size (inches):	.500 (1/2")
Material Type:	Brass
Product Type:	Short Rod Nut
Category Type:	SAE 45° Flare Fittings
Weight (lbs):	0.09
Additional:	From Import

View AllClose
