Service Metal

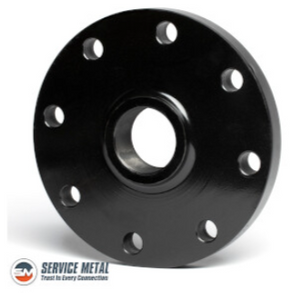

5" X 2" 150# A/SA105 REDUCING THRD FLG RF B16.5
(No reviews yet)
Write a Review
- SKU:
- BFRSC10502.0
- Weight:
- 20.00 LBS
Description
Design Spec: ASME B16.5
End: RF X NPT
Material: ASTM/ASME A/SA105
Pressure Class: 150
Size: 5" 2"
# Bolt Holes - Size: 8 - 0.88"
Bolt Circle Diameter: 8.50"
Flange Bore: 2" NPT (ANSI/ASME B1. 20.1)
Flange OD: 10.00"
Flange Thickness: 0.94"
