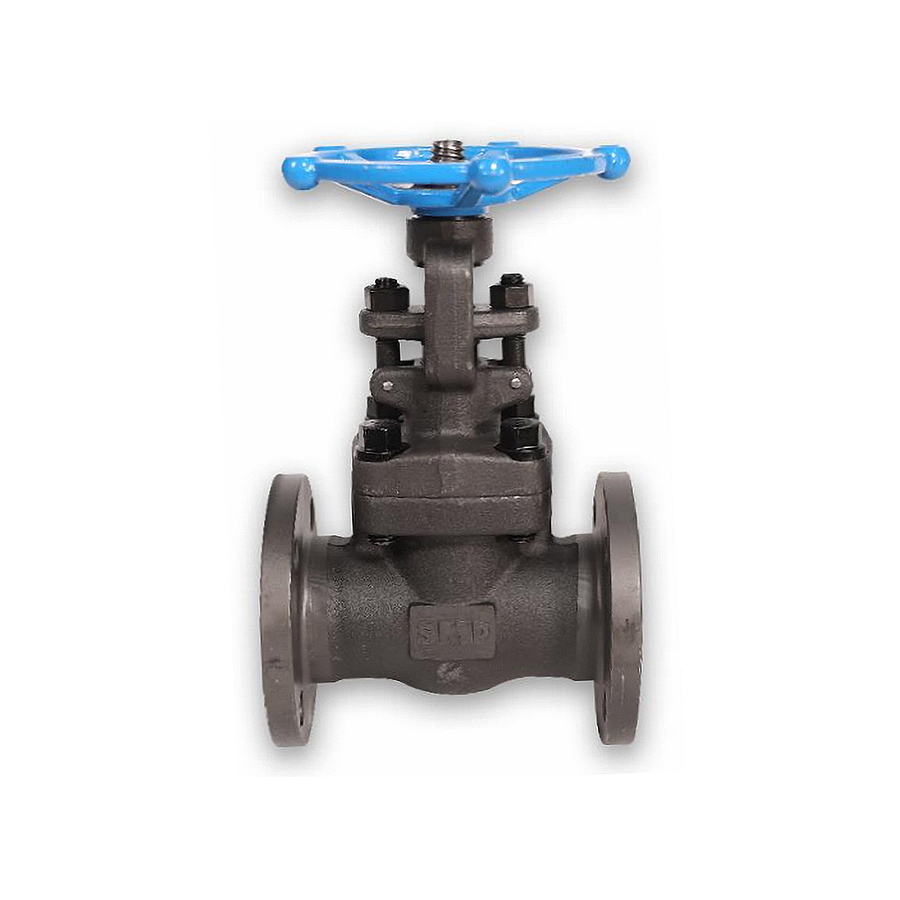

A105N Forged Steel 150# Flanged OS&Y Gate Valves

Flange End x Flange End - Bolted Bonnet - Trim #8 - Conventional (Full) Port - A105N Forged Steel 150# Flanged OS&Y Gate Valves - API 602
Series 801CF

A 150# A105N Flanged Gate Valve OS&Y BB Trim 8 Conv. Port API 602 is used for on/off flow isolation in industrial piping systems. Its primary function is to fully open or close the flow of fluids or gases, ensuring a tight shut-off with minimal pressure drop when open. It is not designed for throttling (flow regulation), as partial opening can cause erosion or damage to the gate and seats.

Data Sheet / Dimensions

Certificate of Conformance

• NACE MR-0175
• 150# Flange Bolt Hole Pattern
• Raised Face Flanged Ends
• Basic Design API 602 & ASME B16.34
• Flanged Ends ASME B16.5
• Face to Face Dimensions per ASME B16.10
• Test and Inspection to API 598
