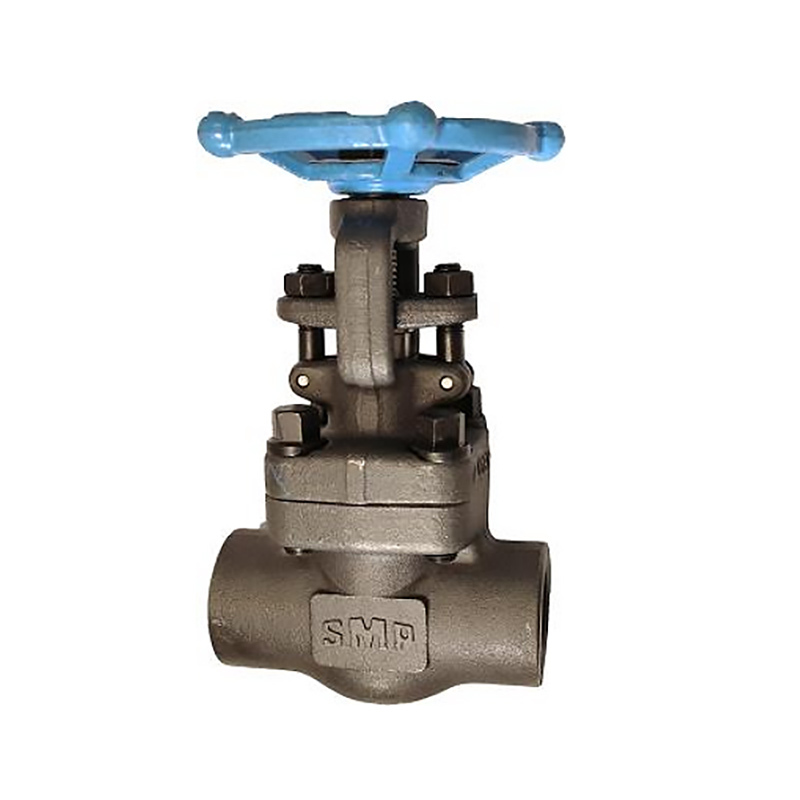

A105N Forged Steel 800# NPT Gate Valves

NPT Threaded - Bolted Bonnet - Trim #8 - Conventional Port - A105N Forged Steel 800# OS&Y Gate Valves - API 602

A conventional port valve (often referred to as a standard port or reduced port valve) is a type of valve where the internal opening (the "bore" or "port") is smaller than the internal diameter of the pipe it is connected to. Think of it like a funnel: the pipe is wide, but the path through the valve narrows down before opening back up on the other side.

Data Sheet / Dimensions

Certificate of Conformance

• Class 800
• Conventional Port
• OS&Y
• Threaded Ends
• Bolted Bonnet
• Rising Stem
• Solid Wedge
• NACE MR-0175
• Basic Design API 602 & ASME B16.34
• Threaded ANSI B1.20.1
• Test and Inspection to API 598
