Socket Weld 3 Piece Ball Valves 1000 PSI

Stainless Steel Socket Weld Ends 3-Piece Full Port Ball Valve - 1000 PSI

Valve Data Sheet

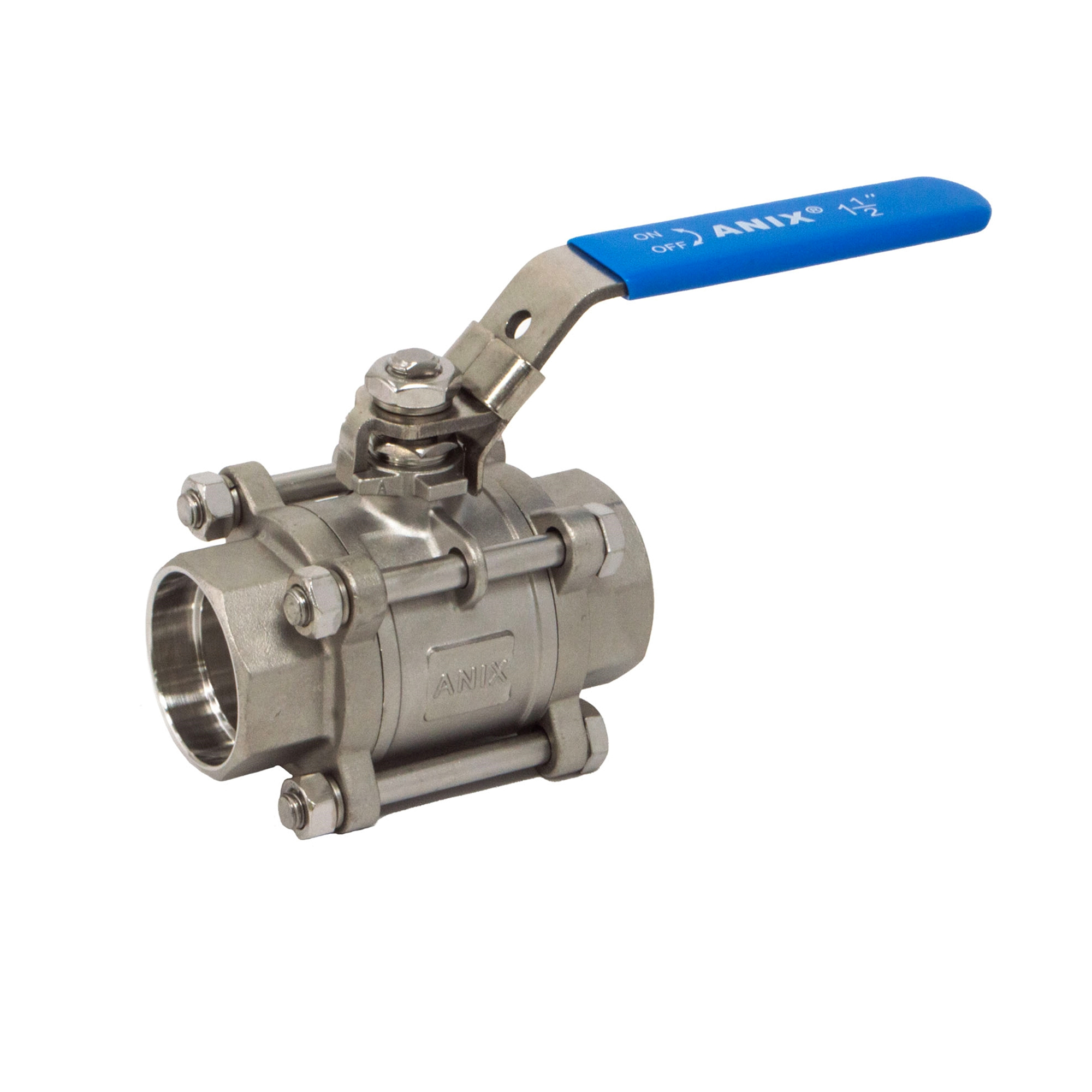

When you're working with water, oil, or gas, you need equipment that can keep up. The ANIX 316 stainless steel 3-piece socket weld ball valve is built for exactly that. With a sturdy socket weld end for secure installation, this valve comes in sizes from 1/4" to 4", giving you plenty of flexibility for different setups. It’s designed for max flow with its full port design and can handle up to 1000 PSI, thanks to its blow-out-proof stem. You also get the peace of mind that comes with a lockable handle, adding a safety boost when needed. Whether you go with R-PTFE or high-temp PTFE seats, you’re covered for a range of applications. Tested to API 598 and compliant with ASME B16.34, this valve is all about reliable performance under pressure.

• 316 Stainless Steel Socket Weld Ball Valve
• Size: 1/4" to 4"
• S316 SS Socket Weld 3-Piece Ball Valve 1000WOG
• Investment Casting Stainless Steel Body
• Socket Weld End Connection
• Lockable Handle
• Blow-Out-Proof Stem Design
• R-PTFE seat
• Working Pressure of 1000 Psi
• For Water, Oil, or Gas Medium Application
• Design fully complies with ASME B16.34
• Tested and Inspected in accordance with API 598
