2 in. Camlock Sight Glass (10 mm) and Strainer Assembly

These In-Line Cam & Groove Sight Glass & Strainer Assemblies are unique in that they allow the flow in a particular hose assembly to be seen and filtered at the same time.
They are fitted with a Male Adapter on one end and a female Coupler on the other allowing for a quick connection to a hose assembly.
The Assembly comes complete with a Threaded Sight Glass Tube, a Witch Hat Funnel Strainer, a Type A Male Camlock Adapter and a Type D Female Camlock Coupler.
To assemble screw the female threaded Type A & Type D to either end of the Sight Glass and the funnel strainer replaces the gasket when installed into the Type D Coupling.

• Description:
• 2 in. x 8 in. Long Threaded Polycarbonate Sight Glass Tube (10mm)

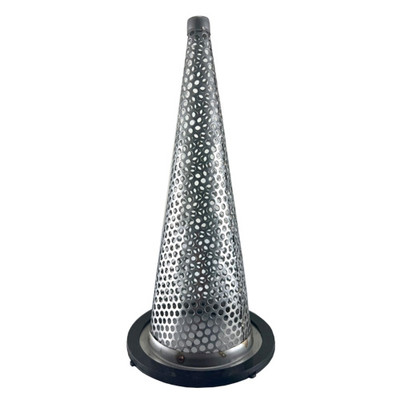

• 2 in. Witch Hat Cone Strainer (To Replace Gasket in Type D Coupler)
• 2 in. Type A Male Adapter (Female Thread)
• 2 in. Type D Female Coupler (Female Thread)

• Uses:
• To view the flow in the hose assembly.
• To filter material being transferred in a hose assembly.

• Advantages: View and Strain your flow simultaneously.

• Operation: Functions as a Sight Glass and a simple filter catching any debris that is larger than the holes on the funnel cone.

• Installation: The Cam and Groove Couplers on either end allow for a quick connect to camlocks already on the hose assembly.

• Material:
• Sight Glass Tube - Polycarbonate (10mm)
• Funnel Strainer - Stainless Steel 304
• Camlocks - Aluminum

• Temperature Rating: -50 °F to +185 °F
• Working Pressure: 500 PSI
