D.O.T. PTC Female Connectors

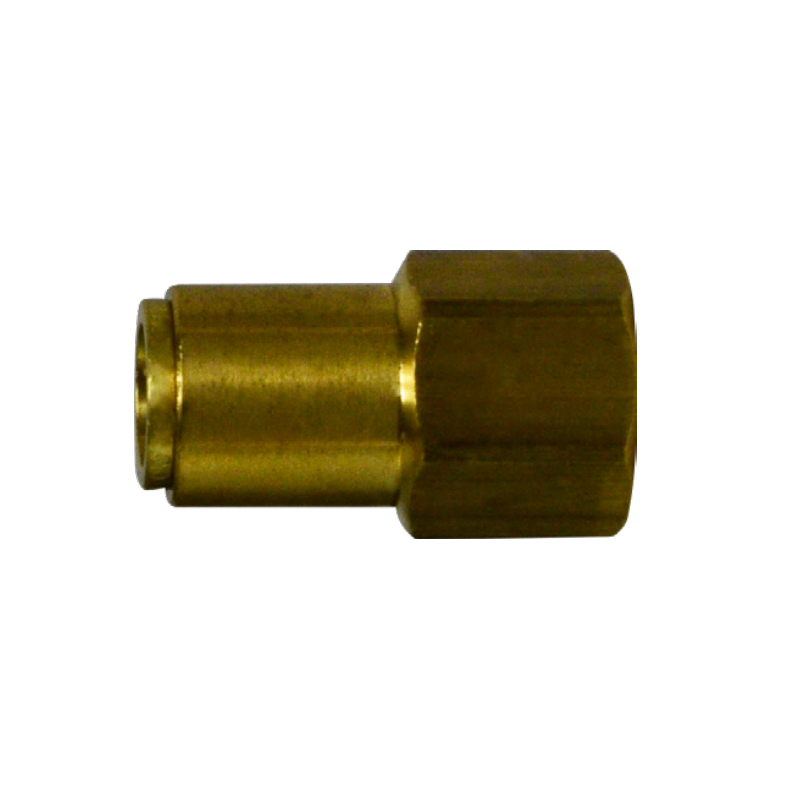

D.O.T. Push-to-Connect Brass Fittings - Brass Female Connectors (Straight)

Regulatory: Meets D.O.T. FMVSS 571.106 SAE J1131 Air Brake System Requirements

DOT Fittings are constructed with an all brass captive eyelet which allows for maximum flow. The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing. All male threads have a pre-applied Teflon® based pipe sealant to provide for easy assembly and leak proof seal. Engineering file/drawing available upon request for all items with industry crossovers listed.

Catalog / Data Sheet

• Materials:
  • Brass
  • "O" Ring: Buna - Nitrile (90 Durometer)
  • EP (Ethylene Propylene)
• Working Pressures and Temperature Ranges:
  • Vacuum to 150 PSI -40°F to 200°F ( -40°C to +93°C )
