BFO Select

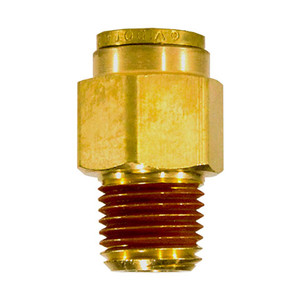

3/4 in. Tube OD x 1/2 in. MNPTF Threaded - Male Connector - D.O.T. Brass Push to Connect Fitting
(No reviews yet)
Write a Review
- SKU:
- 681208
- Availability:
- Available
- Weight:
- 0.20 LBS
Description
Applications:
- Meets D.O.T. FMVSS 571.106 SAE J1131 Air Brake System Requirements
- DOT Fittings are constructed with an all brass captive eyelet which allows for maximum flow. The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing. All male threads have a pre-applied Teflon based pipe sealant to provide for easy assembly and leak proof seal.
- Materials:
Brass
"O" Ring: Buna - Nitrile (90 Durometer)
EP (Ethylene Propylene) - Working Pressures & Temperature Ranges Vacuum to 150 PSI -40°F to 200°F ( -40°C to +93°C )
Product Data:
| Connection Size 1 : 3/4 in |
| Connection Size 2 : 1/2 in |
| Connection Type 1 : Push-to-Connect |
| Connection Type 2 : Male NPTF |
| Dimensions : 1.38 in L |
| Fitting Type : Connector |
| Hex Size : 1-1/16 in |
| Material : Brass |
| Pressure Rating : 150 psi |
| Temperature Rating : -40 to 200 ?F |
| Thread Size : 1/2 - 14 |
Industry Specific Crossovers:
| 02468-1208 | 968-12-8PXDOT |
121018.81 |
AQ68-DOT-12X8 |
1868X12 |
D7068DT12D |
268PC-12x8 |
D7068DT-12D |
268PC12X8 |
DQ68-128 |
268PPDOT-12D |
DQ68DOT1208 |
268PPDOT-12D-Y |
NP68-12-8 |
441618 |
PC146812D |
68PMT-12-8 |
PC1468-12D |
87052 |
PL136812D |
91309 |
PL-1368-12D |
95453049M |
PP68J-DOT |
968-128 |
S68PMT-12-8 |
Working Pressures & Temperature Ranges:
Vacuum to 150 PSI
-40°F to 200°F ( -40°C to +93°C )
-40°F to 200°F ( -40°C to +93°C )
Conformance:
Meets D.O.T. FMVSS 571.106
SAE J1131 Air Brake System Requirements
SAE J1131 Air Brake System Requirements
PDF / Specs / Brochure Catalog / Data Sheet
*Engineering File Available Upon Request
*Engineering File Available Upon Request
Additional:
From Import
Additional Information
Size (inches): |
.750 (3/4") |
Size (inches): |
.500 (1/2") |
Material Type: |
Brass |
Product Type: |
Male Connector |
Category Type: |
D.O.T. Push-In Fittings |
Category Type: |
D.O.T. Push-to-Connnect Fittings |
Specifications or Standards: |
SAE J1131 |
Specifications or Standards: |
D.O.T. FMVSS 571.106 |
End Connection: |
Tube OD x MNPTF |
Additional: |
From Import |
