BFO Select

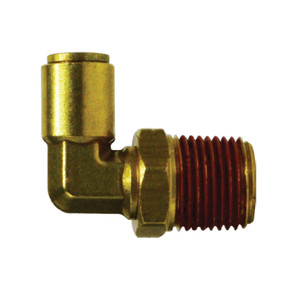

3/8 in. Tube OD x 1/4 in. MNPTF Threaded - 90 Degree Male Swivel Elbow - D.O.T. Push to Connect Brass Fitting
(No reviews yet)
Write a Review
- SKU:
- 690604S
- Availability:
- Available
- Weight:
- 0.11 LBS
Description
Applications:
- Meets D.O.T. FMVSS 571.106 SAE J1131 Air Brake System Requirements
- DOT Fittings are constructed with an all brass captive eyelet which allows for maximum flow. The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing. All male threads have a pre-applied Teflon based pipe sealant to provide for easy assembly and leak proof seal.
- Materials:
Brass
"O" Ring: Buna - Nitrile (90 Durometer)
EP (Ethylene Propylene) - Working Pressures & Temperature Ranges Vacuum to 150 PSI -40°F to 200°F ( -40°C to +93°C )
Product Data:
| Additional Information : 1.08 x 1.14 in Center to End |
| Connection Size 1 : 3/8 in |
| Connection Size 2 : 1/4 in |
| Connection Type 1 : Push-to-Connect |
| Connection Type 2 : Male NPTF Swivel |
| Dimensions : 1.44 in L |
| Fitting Type : 90-deg Elbow |
| Hex Size : 9/16 in |
| Material : Brass |
| Pressure Rating : 150 psi |
| Temperature Rating : -40 to 200 ?F |
| Thread Size : 1/4 - 18 |
Industry Specific Crossovers:
| 02569-0604 | APTC69S-6B |
121030.4 |
AQ69-DOTS-6X4 |
1579-6-4 |
D7069DTS6B |
16264 |
D7069DTS-6B |
169PMT-6-4 |
DOTS69-6-4 |
1869x6S |
DQ69DOTS0604 |
2469x6 |
DQ69DOTS-6X4 |
269PCS-6x4 |
DQ69S-64 |
269PPSDOT-6B |
NP69SW-6-4 |
51915K33 |
PC1469SW6B |
69PMT-6-4 |
PC1469SW-6B |
91233 |
PL1369-6B |
95411412M |
PL-1369-6B |
969-1-64 |
PP69SEE-DOT |
969-6PXDOTS |
S269PMT-6-4 |
Working Pressures & Temperature Ranges:
Vacuum to 150 PSI
-40°F to 200°F ( -40°C to +93°C )
-40°F to 200°F ( -40°C to +93°C )
Conformance:
Meets D.O.T. FMVSS 571.106
SAE J1131 Air Brake System Requirements
SAE J1131 Air Brake System Requirements
PDF / Specs / BrochureAdditional:
From Import
Additional Information
Size (inches): |
.375 (3/8") |
Size (inches): |
.250 (1/4") |
Material Type: |
Brass |
Product Type: |
Reducing Union |
Category Type: |
D.O.T. Push-In Fittings |
Category Type: |
D.O.T. Push-to-Connnect Fittings |
Specifications or Standards: |
SAE J1131 |
Specifications or Standards: |
D.O.T. FMVSS 571.106 |
End Connection: |
Tube OD x MNPTF |
Additional: |
From Import |
