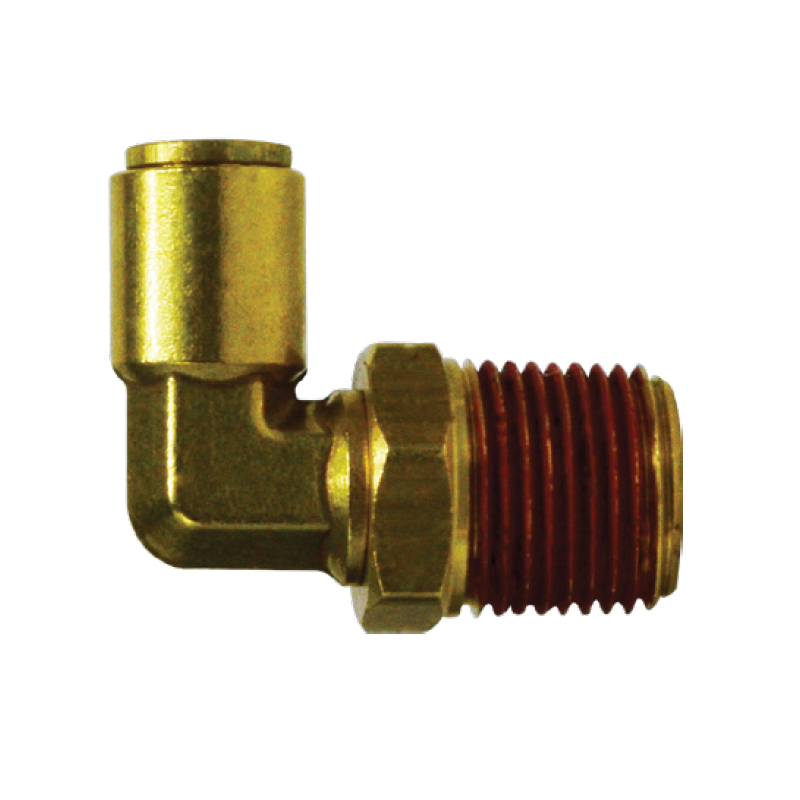

D.O.T. PTC Male 90 Degree Swivel Elbows
D.O.T. Push-to-Connect Brass Fittings - 90 Degree Male Swivel Elbows
Regulatory: Meets D.O.T. FMVSS 571.106 SAE J1131 Air Brake System Requirements
End Connection: Push-to-Connect x Male NPTF
DOT Fittings are constructed with an all brass captive eyelet which allows for maximum flow. The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing. All male threads have a pre-applied Teflon® based pipe sealant to provide for easy assembly and leak proof seal. Engineering file/drawing available upon request for all items with industry crossovers listed.
- Materials:
- Brass
- "O" Ring: Buna - Nitrile (90 Durometer)
- EP (Ethylene Propylene)
- Working Pressures and Temperature Ranges:
- Vacuum to 150 PSI -40°F to 200°F ( -40°C to +93°C )
-
DescriptionSKUPrice
-
690804S$43.91
-
695322S$13.18
-
690806S$23.02
-
690402S$13.11
-
690808S$29.26
-
690404S$18.33
-
691006S$28.11
-
690406S$25.35
-
691008S$39.95
-
690602S$13.55
-
691208S$117.92
-
690604S$16.95
-
691212S$64.56
-
690606S$17.87
-
690608S$26.61
