BFO Select

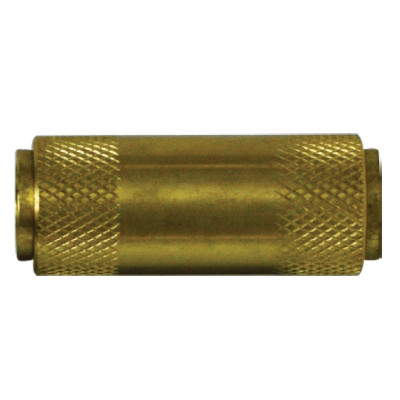

1/4 in. Tube OD - Union - D.O.T. Push to Connect Tube Fitting
(No reviews yet)
Write a Review
- SKU:
- 620400
- Availability:
- Available
- Weight:
- 0.06 LBS
Description
Applications:
D.O.T. Push-In Tube Fittings
- Meets D.O.T. FMVSS 571.106 SAE J1131 Air Brake System Requirements
- DOT Fittings are constructed with an all brass captive eyelet which allows for maximum flow. The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing. All male threads have a pre-applied Teflon based pipe sealant to provide for easy assembly and leak proof seal.
- Materials:
Brass
"O" Ring: Buna - Nitrile (90 Durometer)
EP (Ethylene Propylene) - Working Pressures & Temperature Ranges Vacuum to 150 PSI -40°F to 200°F ( -40°C to +93°C )
Product Data:
| Connection Size 1 : 1/4 in |
| Connection Size 2 : 1/4 in |
| Connection Type 1 : Push-to-Connect |
| Connection Type 2 : Push-to-Connect |
| Fitting Type : Union |
| Material : Brass |
| Pressure Rating : 150 psi |
| Temperature Rating : -40 to 200 deg F |
Industry Specific Crossovers:
| 02462-04 | 962-4PXDOT |
121002.35 | APTC62-4 |
1562-4 | AQ62-DOT-4 |
16640 | D7062DT4 |
1862x4 | D7062DT-4 |
2462x4 | DOT62-4 |
262PC4 | DQ62-4 |
262PC-4 | DQ62DOT04 |
262PPDOT-4 | DQ62DOT-4 |
2PMT-4 | NP62-4 |
51915K41 | PC14624 |
62PMT-4 | PC1462-4 |
87035 | PL1362-4 |
91200 | PL-1362-4 |
94450304M | PP62C-DOT |
962-4 | S62PMT-4 |
Working Pressures & Temperature Ranges:
Vacuum to 150 PSI
-40°F to 200°F ( -40°C to +93°C )
-40°F to 200°F ( -40°C to +93°C )
Conformance:
Meets D.O.T. FMVSS 571.106
SAE J1131 Air Brake System Requirements
SAE J1131 Air Brake System Requirements
PDF / Specs / BrochureAdditional:
From Import
Additional Information
Size (inches): |
.250 (1/4")"Material Type=Brass |
Product Type: |
Union |
Category Type: |
D.O.T. Push-In Fittings |
Category Type: |
D.O.T. Push-to-Connnect Fittings |
Specifications or Standards: |
SAE J1131 |
Specifications or Standards: |
D.O.T. FMVSS 571.106 |
End Connection: |
Tube OD x Tube OD |
Additional: |
From Import |
