BFO Select

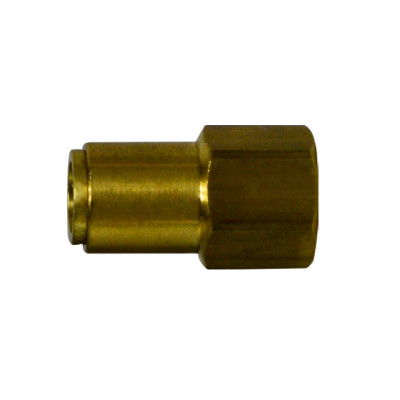

1/4 in. Tube O.D. x 1/8 in. Female NPTF Threaded - Straight Female Connector - D.O.T. Brass Push to Connect Tube Fitting Adapter

(No reviews yet) Write a Review
SKU:
660402
Availability:
Available
Weight:
0.06 LBS
$10.71

Description


Applications:
D.O.T. Push-In Tube Fittings
  • Meets D.O.T. FMVSS 571.106 SAE J1131 Air Brake System Requirements
  • Benefits for Cost Savings & Engineering Project ? Fast assembly: No tools required. Simply push tubing in. Saves up to 75% of assembly time compared to standard air compression fittings. No loose parts to handle. ? Fast disconnect: Hold the collet collar with two fingers and pull out tube. No tools required. ? Reusable: Can be connected and disconnected several times. ? Reliable sealing: Using recommended tubing, full sealing is guaranteed. ? Versatility: Buna N O'ring standard. Viton and others available per request. Secure tube retention. Pulling on tubing only serves to tighten the connection. ? Pre-Applied Teflon based pipe sealant on all male pipe threads, saving customer additional labor. ? Full Flow Design, provides more flow area than conventional fittings with internal tube supports even in the swivels.
  • DOT Fittings are constructed with an all brass captive eyelet which allows for maximum flow. The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing. All male threads have a pre-applied Teflon based pipe sealant to provide for easy assembly and leak proof seal.
  • Materials: Brass "O" Ring: Buna - Nitrile (90 Durometer) EP (Ethylene Propylene)
  • Working Pressures & Temperature Ranges Vacuum to 150 PSI -40°F to 200°F ( -40°C to +93°C )
Product Data:
Additional Information : 0.060 lb Weight
Connection Size 1 : 1/4 in
Connection Size 2 : 1/8 in
Connection Type : Tube | FNPT
Connection Type 1 : Tube OD
Connection Type 2 : FNPTF
Dimensions : 1.33 in L
Fitting Type : Connector
Hex Size : 9/16 in
Material : Brass
Material Construction : Brass
Pressure Rating : 150 psi
Temperature Rating : -40 to 200 deg F
Thread Size : 1/4-18 x 1/8-27
Industry Specific Crossovers:
02466-0402
APTC66-4A
121014.2
AQ66-DOT-4X2
1866x4
D7066DT4A
2466x4
D7066DT-4A
266PC-4x2
DOT66-4-2
266PC4X2
DQ66-42
266PPDOT-4A
DQ66DOT0402
266PPDOT-4A-Y
DQ66DOT-4X2
51915K21
NP66-4-2
66PMT-4-2
PC14664A
6PMT-4-2
PC1466-4A
87045
PL1366-4A
91458
PL-1366-4A
95435504M
PP66C-DOT
966-42
S66PMT-4-2
966-4PXDOT
Working Pressures & Temperature Ranges:
Vacuum to 150 PSI
-40°F to 200°F ( -40°C to +93°C )
Conformance:
Meets D.O.T. FMVSS 571.106 SAE J1131 Air Brake System Requirements
PDF downloadsPDF / Specs / Brochure
Catalog / Data Sheet

*Engineering File Available Upon Request
Additional:
From Import
View AllClose

Additional Information

Size (inches):
.250 (1/4")
Size (inches):
.125 (1/8")
Material Type:
Brass
Product Type:
Female Connector
Category Type:
D.O.T. Push-In Fittings
Category Type:
D.O.T. Push-to-Connnect Fittings
Specifications or Standards:
SAE J1131
Specifications or Standards:
D.O.T. FMVSS 571.106End Connection=Tube OD x FNPTF"
