BFO Select

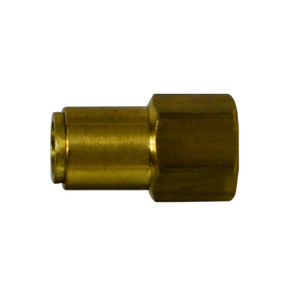

3/8 in. Tube O.D. x 1/4 in. Female NPTF Threaded - Straight Female Connector - D.O.T. Brass Push to Connect Tube Fitting Adapter

(No reviews yet) Write a Review
SKU:
660604
Availability:
Available
Weight:
0.11 LBS
$14.74

Description


Applications:
D.O.T. Push-In Tube Fittings
  • Meets D.O.T. FMVSS 571.106 SAE J1131 Air Brake System Requirements
  • Benefits for Cost Savings & Engineering Project ? Fast assembly: No tools required. Simply push tubing in. Saves up to 75% of assembly time compared to standard air compression fittings. No loose parts to handle. ? Fast disconnect: Hold the collet collar with two fingers and pull out tube. No tools required. ? Reusable: Can be connected and disconnected several times. ? Reliable sealing: Using recommended tubing, full sealing is guaranteed. ? Versatility: Buna N O'ring standard. Viton and others available per request. Secure tube retention. Pulling on tubing only serves to tighten the connection. ? Pre-Applied Teflon based pipe sealant on all male pipe threads, saving customer additional labor. ? Full Flow Design, provides more flow area than conventional fittings with internal tube supports even in the swivels.
  • DOT Fittings are constructed with an all brass captive eyelet which allows for maximum flow. The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing. All male threads have a pre-applied Teflon based pipe sealant to provide for easy assembly and leak proof seal.
  • Materials:
    Brass
    "O" Ring: Buna - Nitrile (90 Durometer)
    EP (Ethylene Propylene)
  • Working Pressures & Temperature Ranges Vacuum to 150 PSI -40°F to 200°F ( -40°C to +93°C )
Product Data:
Connection Size 1 : 3/8 in
Connection Size 2 : 1/4 in
Connection Type 1 : Tube OD
Connection Type 2 : FNPTF
Dimensions : 1.40 in L
Fitting Type : Connector
Hex Size : 3/4 in
Material : Brass
Pressure Rating : 150 psi
Temperature Rating : -40 to 200 deg F
Thread Size : 3/8-18 x 1/4-18
Industry Specific Crossovers:
02466-0604
121014.44
1866x6
2466x6
266PC-6x4
266PPDOT-6B
266PPDOT-6B-Y
51915K23
66PMT-6-4
87047
91460
95435512M
966-6PXDOT
APTC66-6B
AQ66-DOT-6X4
D7066DT6B
D7066DT-6B
DOT66-6-4
DQ66-64
DQ66DOT0604
DQ66DOT-6X4
NP66-6-4
PC14666B
PC1466-6B
PL1366-6B
PL-1366-6B
S66PMT-6-4
Working Pressures & Temperature Ranges:
Vacuum to 150 PSI
-40°F to 200°F ( -40°C to +93°C )
Conformance:
Meets D.O.T. FMVSS 571.106 SAE J1131 Air Brake System Requirements
PDF downloadsPDF / Specs / Brochure
Catalog / Data Sheet

*Engineering File Available Upon Request

Additional:
From Import
View AllClose

Additional Information

Size (inches):
.375 (3/8")
Size (inches):
.250 (1/4")
Material Type:
Brass
Product Type:
Female Connector
Category Type:
D.O.T. Push-In Fittings
Category Type:
D.O.T. Push-to-Connnect Fittings
Specifications or Standards:
SAE J1131
Specifications or Standards:
D.O.T. FMVSS 571.106End Connection=Tube OD x FNPTF"
