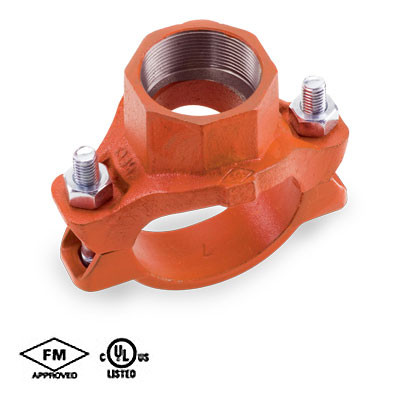

2-1/2 in. x 1/2 in. Grooved Mechanical Tee - Threaded Outlet - Ductile Iron w/ Orange Paint - 65MT Grooved Fire Protection Fitting - UL/FM

Branch size x Run Size: 2-1/2 in. x 1/2 in.

SCI Grooved Catalog SCI Grooved FM Approvals Summary SCI Grooved Fittings UL Approvals

• Maximum working pressure 500 psi (34.5 bar) depending on size and schedule of pipe
• ASME B1.20.1 NPT Threads
• Equivalent length in feet of Schedule 40 outlet pipe with a Hazen-Williams coefficient of 120 per UL 213
• All housings, gaskets and bolts identified by SCI logo
• 100% Magnetic Particle inspection of each Bolt
• Each bolt has a minimum tensile strength of 110,000 psi
• Gasket Grade E - EPDM (green stripe) -30°F (-34°C) to +230°F (+110°C)
• Ductile iron housings conform to ASTM A-536
• Smith-Cooper Warranty only applies to assemblies made with housings, gaskets and bolts carrying the SCI logo
