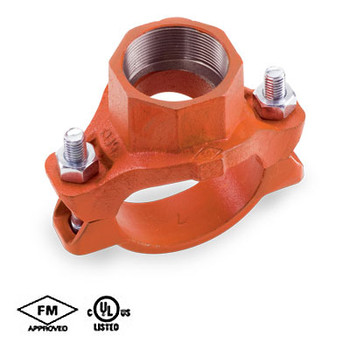

Mechanical Tees Threaded
SCI Grooved Catalog SCI Grooved FM Approvals Summary SCI Grooved Fittings UL Approvals
- Maximum working pressure 500 psi (34.5 bar) depending on size and schedule of pipe
- ASME B1.20.1 NPT Threads
- Equivalent length in feet of Schedule 40 outlet pipe with a Hazen-Williams coefficient of 120 per UL 213
- All housings, gaskets and bolts identified by SCI logo
- 100% Magnetic Particle inspection of each Bolt
- Each bolt has a minimum tensile strength of 110,000 psi
- Gasket Grade E - EPDM (green stripe) -30°F (-34°C) to +230°F (+110°C)
- Ductile iron housings conform to ASTM A-536
- Smith-Cooper Warranty only applies to assemblies made with housings, gaskets and bolts carrying the SCI logo
-
DescriptionSKUPrice
-
65MT3020004$54.12
-
65MT3020006$54.12
-
65MT3020010$54.12
-
65MT3020012$54.12
-
65MT3020014$54.12
-
65MT3024004$58.10
-
65MT3024006$58.10
-
65MT3024010$58.10
-
65MT3024012$64.45
-
65MT3024014$62.05
-
65MT3030010$68.43
-
65MT3030012$70.04
-
65MT3030014$70.04
-
65MT3030020$78.75
-
65MT3040010$79.58
-
65MT3040012$79.58
-
65MT3040014$82.75
-
65MT3040020$86.73
-
65MT3040024$86.73
-
65MT3040030$90.92
-
65MT3050012$101.04
-
65MT3050014$101.04
-
65MT3050020$101.04
-
65MT3050024$106.63
-
65MT3050030$109.11
-
65MT3060012$102.65
-
65MT3060014$102.65
-
65MT3060020$102.65
-
65MT3060024$112.19
-
65MT3060030$113.67
-
65MT3060040$122.77
-
65MT3080020$188.58
-
65MT3080024$196.10
-
65MT3080030$214.71
-
65MT3080040$231.82
