SMP

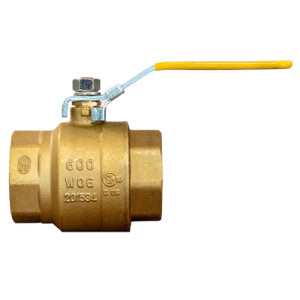

2 in. NPT Threaded - 2-Piece Full Port - PTFE Seat - 600# WOG Lead Free Brass Ball Valve - Locking Handle - CSA/NSF61
(No reviews yet)
Write a Review
- SKU:
- BFSM615LFT02.0
- Availability:
- Available
- Weight:
- 3.50 LBS
Description
Specifications / Applications:
600# Lead Free Brass - NPT 2-PC Ball Valve- Full Port - PTFE Seats - Locking Lever Handle
SMP FIG SM615LFT
- MSS SP-110 Design
- 600 lb. CWP, 150 lb. WSP
- Full Port (1/4" thru 3")
- NSF-61 (1/4" thru 2") | NSF-372 (2 ½" thru 4")
- CSA Approved
- Threaded Ends ANSI B1.20.1
- ISO 9001:2008 Manufacturer
- Forged UNS C46500 Brass Body and Bonnet
- Blow-out Proof Stem
- Locking Handle
| Design Spec: | MSS SP-110 |
|---|---|
| End: | NPT |
| Material: | ASTM B124 |
| Pressure Class: | 600 |
| Size: | 2" |
| Certification: | CSA & UL Approved |
| Cold Working Pressure (CWP): | 600 psi |
| End to End: | 4.41" |
| Lever Length: | 5.51" |
| Non-Shock Working Pressure: | 150 psi |
Additional:
Country of Origin: Vietnam
PDF / Specs / BrochureAdditional Information
Size (inches): |
2.00 (2") |
Material Type: |
Lead Free Brass |
Product Type: |
Ball Valve |
Category Type: |
Industrial Valves |
End Connection: |
FNPT x FNPT |
Port Type: |
Full Port |
Pressure Rating (psi): |
600 |
WSP Rating (psi): |
150 |
Specifications or Standards: |
CSA |
Specifications or Standards: |
NSF61 |
Weight (lbs): |
3.5 |
Additional: |
From Import - Vietnam |
