BFO Select
2 in. NPT Threaded - 90 Degree Side Outlet Elbow - 150# A197 Malleable Iron Black Pipe Fitting - UL/FM
(No reviews yet)
Write a Review
- SKU:
- B15033OE1020C
- Availability:
- Available
- Weight:
- 2.50 LBS
Description
Material Specifications:
90° Side Outlet Elbows - 150# Malleable Iron Black Pipe Fittings
A fitting with a 90-degree bend and an additional side outlet (three openings), allowing pipes to connect at a right angle with a third pipe branching off. The side outlet allows for branching off to additional piping, enabling complex system designs. For use in fire protection systems, plumbing systems for non-potable water, gas and oil lines, HVAC systems and industrial piping.
Conformance:
- Malleable Castings conform to ASTM A197
- Hot-Dipped Galvanized Fittings conform to ASTM A153
- Malleable Fitting Dimensions conform to ASME B16.3
- Malleable Bushings, Plugs and Locknuts conform to ASME B16.14
- Malleable Unions conform to ASME B16.39
- NPT Threads on all fittings conform to ASME B1.20.1
- Class 150 fittings are UL listed and FM approved at 300psi.
- Class 300 fittings are UL listed.
- Manufacturing Facility is ISO Certified
- *Galvanized Fittings are approved to ANSI/NSF 61-4 Annex G and CA AB1953 (<0.25%Lead)
- Country of origin covered is Thailand & China
End Connection:
NPT Threaded - ASME B1.20.1
Female NPT x Female NPT x Female NPT
Female NPT x Female NPT x Female NPT
Temperature Rating:
-20° to 350° deg F
Pressure:
Saturated steam 150 PSI @ 350°F;
Max pressure 300 PSI @ 150° F
Max pressure 300 PSI @ 150° F
Applications:
Use with air, water, oil, natural gas, steam
Standards Met:
Class 150# pipe fittings are UL Listed and FM Approved @ 300 PSI
ASTM A197 / ASME B16. / ASME B16.14 / ASME B16.39 / ASME B1.20.1
ASTM A197 / ASME B16. / ASME B16.14 / ASME B16.39 / ASME B1.20.1
COC Available:
COC -Yes
MTR - No (if required - see our domestic line from Anvil)
MTR - No (if required - see our domestic line from Anvil)
Additional:
Country of Origin:
From Import - China or Thailand (subject to change)
From Import - China or Thailand (subject to change)
PDF/ Specs / BrochureAdditional Information
Size (inches): |
2.00 (2") |
Material Type: |
Black Malleable Iron |
Product Type: |
90° Side Outlet Elbow |
Category Type: |
Pipe Fittings |
Pressure Rating (psi): |
150 |
End Connection: |
NPT |
Specifications or Standards: |
UL/FM |
Specifications or Standards: |
ASME B1.20.1 |
Specifications or Standards: |
ASTM A197 |
Weight (lbs): |
2.5 |
Additional: |
From Import |
Industry Crossover: |
33OE1020C |
Related Products
Related Products
2 in. NPT Threaded - 90 Degree Side Outlet Elbow - 150# A197 Galvanized Malleable Iron Pipe Fitting - UL/FM
BFO Select
$39.22
Material Specifications:
90° Side Outlet Elbows - 150# ASTM A197 Galvanized Malleable Iron Pipe Fittings UL/FM
A fitting with a 90-degree bend and an additional side outlet (
G15034OE1020C
1 in. NPT Threaded- 90 Degree Side Outlet Elbow - 150# A197 Malleable Iron Black Pipe Fitting - UL/FM
BFO Select
$14.40
Material Specifications:
90° Side Outlet Elbows - 150# Malleable Iron Black Pipe Fittings
A fitting with a 90-degree bend and an additional side outlet (three openings), allo
B15033OE1010C

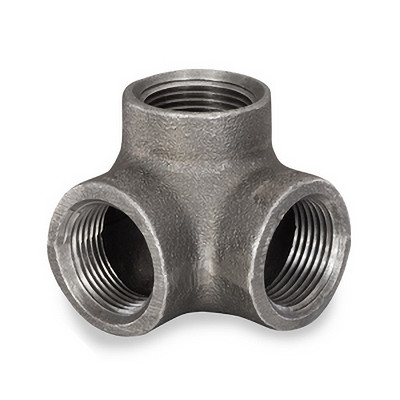

1/2 in. NPT Threaded- 90 Degree Side Outlet Elbow - 150# A197 Malleable Iron Black Pipe Fitting - UL/FM
