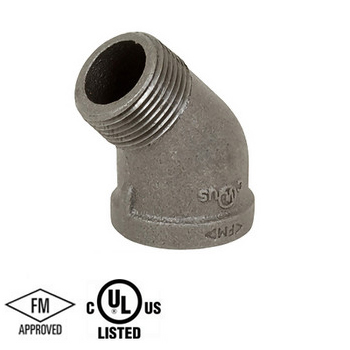

45 Degree Street Elbows
45° Street Elbows - 150# Malleable Iron Black Pipe Fittings
Male NPT x Female NPT Threaded
45-degree street elbow with Male x Female National Pipe Taper (NPT) threads and is used to change flow direction between two pipes and modify end connections. Black pipe fittings for gas and water sprinkler systems.
- Class 150 black pipe fittings are UL Listed and FM Approved at 300 psi
- Class 300 black pipe fittings are UL Listed
- Hot-dipped galvanized pipe fittings are certified to; NSF/ANSI 61-4 and California AB1953 Lead Free
- Malleable castings conform to ASTM A197, ASME B16.3, ASME B16.14 and ASME B16.39
- Hot-dipped galvanized fittings conform to ASTM A153
- NPT threads on all fittings conform to ASME B1.20.1
- Independent lab verification that fittings meet applicable chemical & physical properties
- Manufacturing facilities are ISO 9001:2008 and ISO 14001.
- Fittings are 100% air tested Canadian Registration Numbers (CRN) available
-
DescriptionSKUPrice
-
B15033SF1001C$4.87
-
B15033SF1002C$3.63
-
B15033SF1003C$4.12
-
B15033SF1004C$3.31
-
B15033SF1006C$5.09
-
B15033SF1010C$5.91
-
1-1/4 in. NPT Threaded 45 Degree Street Elbow - 150# Black Malleable Iron Pipe Fitting - A197, UL/FM
B15033SF1012C$10.22 -
1-1/2 in. NPT Threaded 45 Degree Street Elbow - 150# Black Malleable Iron Pipe Fitting - A197, UL/FM
B15033SF1014C$12.67 -
B15033SF1020C$21.37
-
2-1/2 in. NPT Threaded 45 Degree Street Elbow - 150# Black Malleable Iron Pipe Fitting - A197, UL/FM
B15033SF1024C$45.46 -
B15033SF1030C$69.65
-
B15033SF1040C$130.43
