Reducing Tees

150# Galvanized Malleable Iron - Female NPT Threaded - Reducing Tees

** Product image provided is for visual reference only and are not size specific
** Review the product details for complete dimensions and part information to ensure proper item selection

ASTM A153 / NSF/ANSI 61-4 & California AB1953 Lead Free

ASTM A197 / ASME B1.20.1 / ASME B16.3 / ASME B16.14 / ASME B16.39 /
UL/ FM

 150# Malleable Iron Reducing Tees Data Sheet

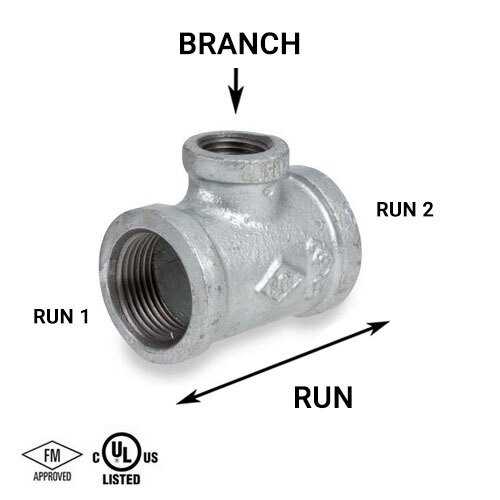

Sizes are listed in the following order:
Run 1 x Run 2 x Branch Outlet Diameter

Reducing tees can reduce on the run, the branch or both. The difference between a reducing tee and a bull head tee - is that a bull head tee typically will have the same size outlets on the run - and enlarge on the top branch outlet.

• Class 150 pipe fittings are UL Listed and FM Approved at 300 psi
• Class 300 pipe fittings are UL Listed
• Hot-dipped galvanized pipe fittings are certified to; NSF/ANSI 61-4 & California AB1953 Lead Free
• Malleable castings conform to ASTM A197, ASME B16.3, ASME B16.14 & ASME B16.39
• Hot-dipped galvanized pipe fittings conform to ASTM A153
• NPT threads on all pipe fittings conform to ASME B1.20.1
• Independent lab verification: fittings meet applicable chemical & physical properties.
• Manufacturing facilities are ISO 9001:2008 & ISO 14001.
• Fittings are 100% air tested.
• Canadian Registration Numbers (CRN) available - contact us before ordering
