Bull Head Tees

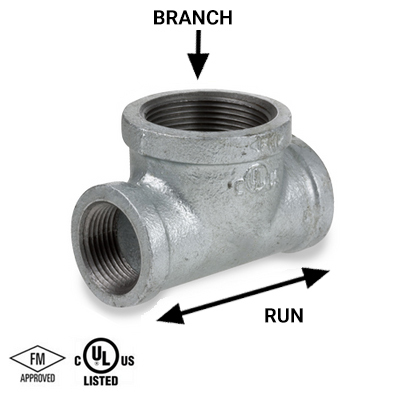

Bull Head Tee - 150# Galvanized Malleable Iron NPT Threaded Pipe Fittings

ASTM A197 / ASME B1.20.1 / ASME B16.3 / ASME B16.14 / ASME B16.39 / UL/ FM

The difference between a reducing tee and a bull head tee - is that a bull head tee typically will have the same size outlets on the run - and enlarge on the top branch outlet. Reducing tees can reduce on the run, the branch or both - but they will not enlarge on the branch outlet - they will only reduce on them.

Sizes are listed in the following order: Run 1 x Run 2 x Branch Outlet Diameter

• Class 150 black pipe fittings are UL Listed and FM Approved at 300 psi
• Class 300 black pipe fittings are UL Listed
• Malleable castings conform to ASTM A197, ASME B16.3, ASME B16.14 and ASME B16.39
• NPT threads on all fittings for pipes conform to ASME B1.20.1
• Independent lab verification that fittings meet applicable chemical & physical properties
• Manufacturing facilities are ISO 9001:2008 and ISO 14001.
• Fittings are 100% air tested. Canadian Registration Numbers (CRN) available

• Image provided is for visual reference only and are not size specific
• Review the product details for complete dimensions and part information to ensure proper item selection
