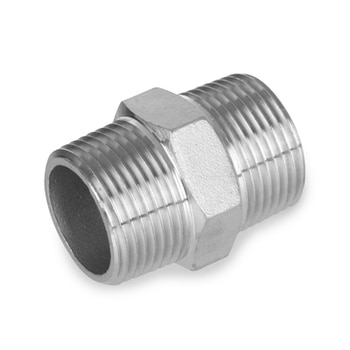

2 in. NPT Threaded - Hex Nipple - 150# Cast 304 Stainless Steel Pipe Fitting

(No reviews yet) Write a Review
0.95 LBS


Class 150 stainless steel 304 & 316 cast pipe fittings. Features male National Pipe Taper (NPT) threads for closing the end of a female threaded pipe. Hex nipples connect with female pipes or fittings and connects with NPT threads, which create a tighter seal than straight threads. The hexagon allows for increased leverage and use with a wrench during installation and disassembly.

Stainless Steel Hex Pipe Nipples 150# Schedule 40 Pipe Fittings

Hex Nipples - 150# Stainless Steel

  • 304 stainless steel castings conform to ASTM A351 ACI Grade CF8
  • 316 stainless steel casting conform to ACI Grade CF8M (316)
  • NPT threads on pipe fittings conform to ASME B1.20.1
  • Manufacturing facility is ISO 9001:2008
  • Certified pipe fittings meet applicable chemical & mechanical properties
  • Dimensions:
  • Dimensions are for reference only and subject to change.
  • Contact us if you require fittings with specific dimensions.
  • * Sizes 1" up to 4" may have 8 hexes instead of 6

Hex Nipple Reference Dimensions

Diameter (inches) A 304 Stainless Steel
Part Number
316 Stainless Steel
Part Number
1/8" 1.30 10-A 27-M
1/4" 1.30 10-B 27-N
3/8" 1.38 10-C 27-O
1/2" 1.67 10-D 27-P
3/4" 1.81 10-E 27-Q
1" 1.97 10-F 27-R
1-1/4" 2.28 10-G 27-S
1-1/2" 2.36 10-H 27-T
2" 2.70 10-I 27-U

* Dimensions are for reference only.

View AllClose

Warranty Information

Quality promiseQuality Guarantee & Product Warranty

You are entitled to quality products. If you find that the quality of your product is unacceptable?????contact us.
Our products are warranted?????to be free of defects in material or workmanship upon delivery.
Upon receiving the return shipment, inspection and confirmation of defective product - we will replace or refund your order.
No warranty is included against expense for removal, re-installation or other consequential damages arising from any defect.
This warranty?????is the sole warranty of QMC Technologies, Inc and its subsidiaries.
Any other warranties expressed, implied in law or implied in fact, including any warrants of merchantability and fitness for use are hereby specifically excluded.

Dimensions provided are for reference only and subject to change.
If you require exact dimensions for our 150# stainless steel cast pipe fitting line - contact us.

Need to Make a Return? Click Here
Shipping Policy
View Shipping Policy Here
View AllClose

Additional Information

Size (inches):
2.00 (2")
Material Type:
304 Stainless Steel
Product Type:
Hex Nipple
Category Type:
Pipe Fittings
Pressure Rating (psi):
End Connection:
Weight (lbs):
From Import
