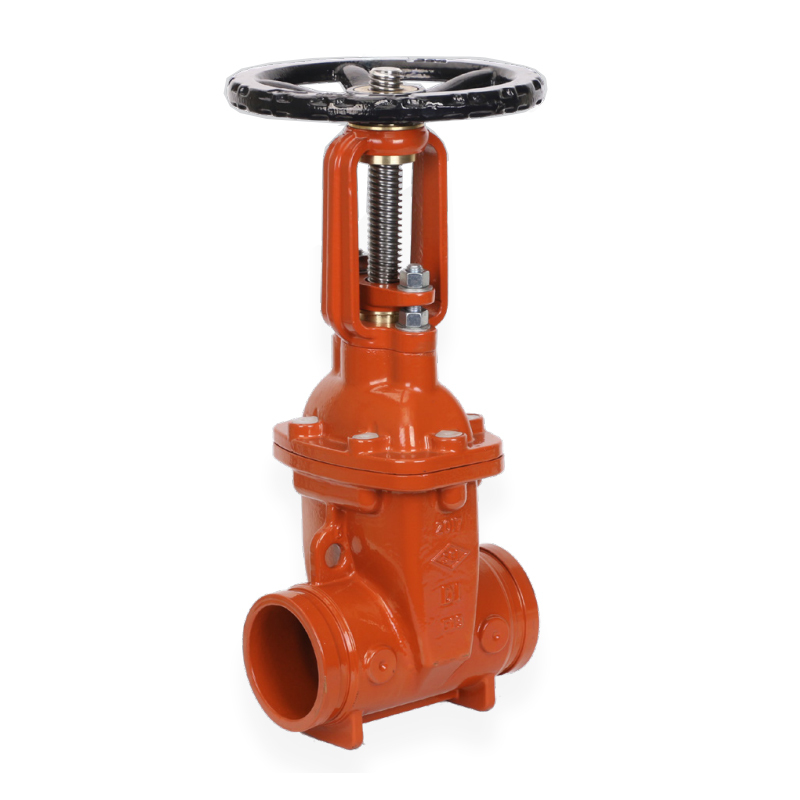

35GW Ductile Iron Resilient Wedge Gate Valve - Groove x Groove End - OS&Y - 300PSI - UL/FM with Handwheel

PDF downloadsData Sheet / Dimensions

  • 300 lb. non-shock cold working pressure
  • Ductile iron body and bonnet
  • 304 Stainless steel stem
  • Wax encapsulated stainless cap screws
  • Fusion bonded epoxy coating AWWA C550
  • Meets AWWA C515
  • Certified to ANSI/NSF 61 and 372 (Lead Free)
  • UL Listed / FM Approved up to 12"
  • Grooved stem for tamper switch
  • Tapped and plugged for by-pass with additional bosses
  • Smith Cooper Branded for full traceability
  • Description
    SKU
    Price

  • 4 in. Grooved x Groove Ends - 300PSI CWP - UL/FM Resilient Wedge OS&Y Ductile Iron Gate Valve - Series 017135GW

    017135GW040
    $1,045.45
    Add to Cart Add to Quote

  • 6 in. Grooved x Groove Ends - 300PSI CWP - UL/FM Resilient Wedge OS&Y Ductile Iron Gate Valve - Series 017135GW

    017135GW060
    $1,642.61
    Add to Cart Add to Quote

  • 8 in. Grooved x Groove Ends - 300PSI CWP - UL/FM Resilient Wedge OS&Y Ductile Iron Gate Valve - Series 017135GW

    017135GW080
    $2,531.67
    Add to Cart Add to Quote
