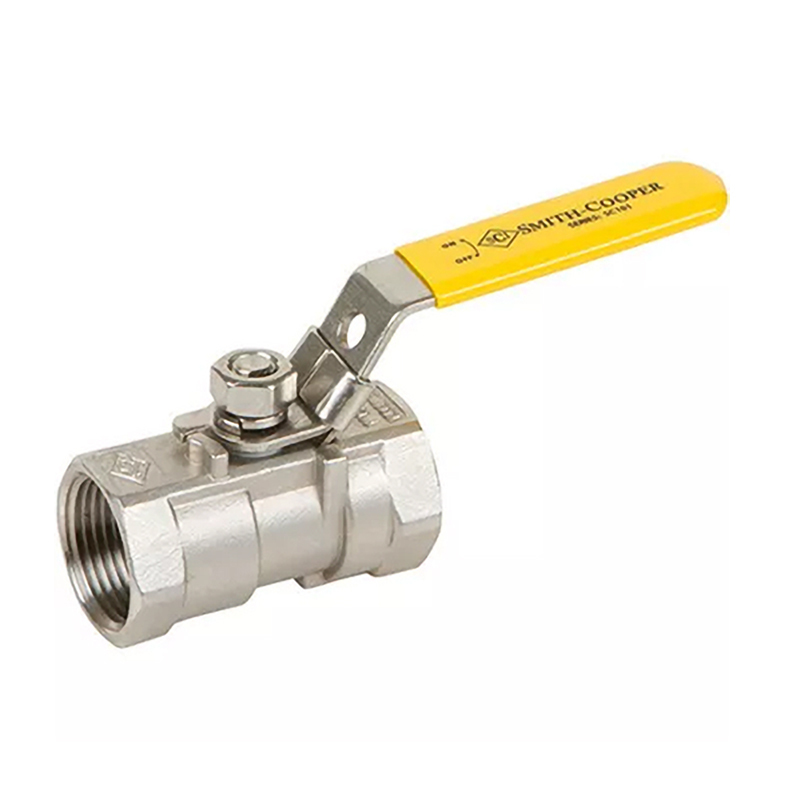

Series SC101 One-Piece 316 Stainless Ball Valves
The Smith-Cooper Series SC101 One-Piece 316 Stainless Steel Ball Valve is designed for a variety of applications due to its durable construction, corrosion resistance, and reliable sealing. The valve’s reduced port design and 316 stainless steel body make it particularly well-suited for environments requiring corrosion resistance and durability for industrial end uses.
Series SC101 One-Piece 316 Stainless Ball Valves
Female NPT x Female NPT
1000# CWP / 150# WSP - Lead Free
Series SC101 ball valve's reduced port design makes it cost-effective and suitable for applications like chemical processing, low-pressure steam, or water systems where the flow restriction is not a significant concern.
SC101 One-Piece 316 Stainless Ball Valve Datasheet
SCI Series SC101 1-Piece 316 Stainless Steel Ball Valve - IOM Manual
- 1000# CWP, 150# WSP
- NPT Reduced Port
- Body/Ball: ASTM A351 GR CF8M (SS316)
- Stem: ASTM A276 T-316
- RTFE Seats
- Pressure balancing hole in ball slot
- Blow-Out Proof Stem
- Vacuum Service to 29" Hg
- Locking Handle
- MSS SP-110
- ISO 9001: 2015 Manufacturer
- Lead Free
-
DescriptionSKUPrice
-
BFSC101C$31.32
-
BFSC101E$31.32
-
BFSC101G$36.25
-
BFSC101I$44.96
-
BFSC101L$67.43
-
BFSC101K$93.08
-
BFSC101M$120.42
-
BFSC101N$181.37
