Sharpe Valves

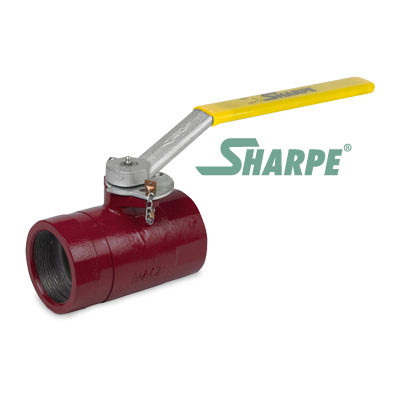

1 in. NPT Threaded - 1000 PSI 2 Piece Full Port - Ductile Iron Oil Patch Ball Valve (w/Heavy Duty Locking Device) Sharpe Series SVOP50DA6RV
(No reviews yet)
Write a Review
- SKU:
- SVOP50DA6RV010
- MPN:
- SVOP50DA6RV010
- Availability:
- Available
- Weight:
- 4.50 LBS
Description
Material Specifications:
Oil Patch Ductile Iron Ball Valve Sharpe® Series OP50
Sharpe® polymer-seated, ductile iron, 2-piece ball valves provide superior performance and reliability in the oil patch.
Bi-directional, bubble tight shut-off
Size Range: Varies by Figure - Full Port. NPS 3/4"-4" (DN 20-100) available
Pressure Ratings: 1000, 2000, 3000, and 5000 CWP
Body Material: Ductile Iron, Carbon Steel
Standards: NACE MR0175
End Connections: Threaded
Blow-Out Proof Stem
Lockable, Heavy-Duty Handle as standard
Grease Fitting for Lubrication and Protection against Corrosion & Moisture. Double O-Ring Stem Seal
- Ductile Iron Body
- 1000 psi
- Full Port
- Two Piece
- RPTFE Seats
- Nace MR-01-75-2009 Compliant
- Heavy Duty Locking Device
- Blow-out Proof Stem
- Double O-Ring Stem Seal
- Grease Fitting for Constant Lubrication and Protection Against Corrosion and Moisture
Additional:
From Import - China
PDF/ Specs / BrochureAdditional Information
Size (inches): |
1.00 (1") |
Material Type: |
Ductile Iron |
Product Type: |
Oil Patch Ball Valve |
Category Type: |
Industrial Valves |
Series: |
SVOP50DA6RV |
Style: |
2 Piece |
Specifications or Standards: |
NACE MR0175 |
End Connection: |
NPT x NPT |
Port Type: |
Full Port |
Pressure Rating: |
1000 |
Weight (lbs): |
4.5 |
Additional: |
From Import |
