Sharpe Valves

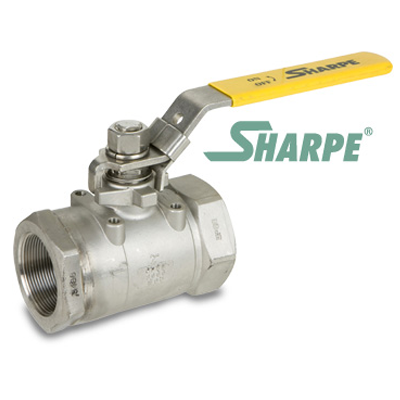

1/2 in. 316 Stainless Steel 6000 WOG Full Port Seal Welded Threaded Ball Valve Sharpe Valves Series 50F767
(No reviews yet)
Write a Review
- SKU:
- SV50F767004
- MPN:
- SV50F767004
- Availability:
- Available
- Weight:
- 1.50 LBS
Description
| Type | 316 Stainless Steel 6000 WOG Seal Welded Threaded Ball Valve - Series 50F76 |
| Series | 50F767 |
| End Connection | Threaded |
| Approx Cv | 7 |
| Port | 0.37 |
| Pressure Rating | 6000 CWP Rating |
| Materials | |
| Body Material | |
| Seat Material | |
| Material Standards | Nace MR_0175 Compliant; |
| ISO | |
| Standards | ASTM A351 CF8M; ASTM A216 WCB; ASME B16.34 Class 2500; |
| Test Standard | API 608 |
| Description | Seal Weld Construction; Locking Device Handle; Blow Out Proof Stem; Anti Static Device; ISO Mounted Pad; |
| Weight: | 1.20 lbs |
| Upper Temperature Rating | 200 Degrees Fahrenheit |
|---|---|
| Measurement System | Inch |
| Connector Type | NPT Female |
| Construction Type | Full Port |
| Handle Type | Lockable Lever Handle |
| Internal Packing Material | PTFE |
| Item Shape | Inline |
| Seal material | PTFE |
| Seat Material | Peek |
| Structure Description | Two Piece |
| Style | Threaded |
Additional Information
Size (inches): |
.375 (3/8") |
Material Type: |
316 Stainless Steel |
Product Type: |
Ball Valve |
Category Type: |
Industrial Valves |
Series: |
50F767 |
Style: |
2 Piece |
End Connection: |
NPT |
Port Type: |
Full Port |
Pressure Rating (psi): |
6000 |
Weight (lbs): |
1.5 |
