API 607 Fire Safe Flanged Ball Valve - ANSI 150

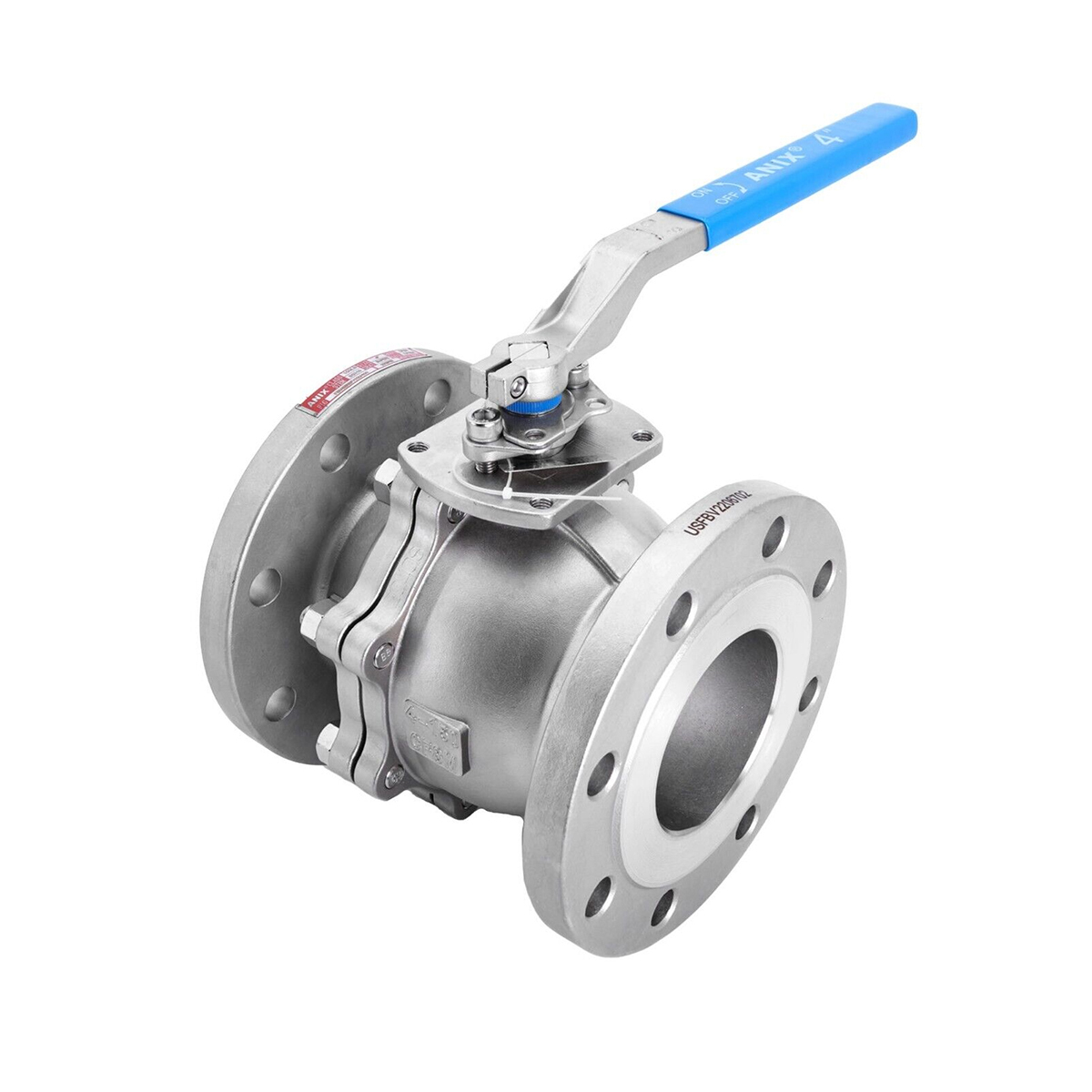

ANIX Stainless Steel Flanged Ball Valve ANSI Class 150

ASME B16.34 and API 607 / API 598 / ANSI 150

ANIX CF8M 2-Piece Flanged Full Port Ball Valve ANSI 150# and ANSI 300# is a versatile solution for all your industrial needs. We stock sizes from 1/2" to 12", with a CF8M stainless steel body and flanged end connection for easy installation in your piping system. The flanged connection provides a seal that can withstand hazardous air and fluid transport. Our valve features a 316 stainless steel ball and trim with an R-PTFE seat for durability and performance. Safety features include a blow-out-proof stem and anti-static design, making it suitable for water, oil, or gas applications. You can operate this valve in the pipeline with a locking handle for added security. A standout feature is its API 607 fire-safe certification; in case of emergency, the valve will remain operational and secure at high temperatures, giving you peace of mind in your application. It operates from -20°F to 356°F and can withstand temperature spikes from -50°F to 450°F. Compliant with ASME B16.34 and rigorously tested to high safety and performance standards, the ANIX Stainless Steel Ball Valve will simplify your workflow.

Data Sheet / Dimensions

IOM - Installation, Operation & Maintenance

• CF8M SS316 RFFE 2-PC SS Full Port Ball Valve ANSI 150/300
• CF8M Cast Stainless Steel Body
• Full Port / Full Bore
• SS316 Ball & Stem, RPTFE Seat
• Flange End Connection according to ASME B16.5
• Lockable Handle
• Blow-Out-Proof Stem Design
• Graphite Packing
• Fire Safe and Anti-static Design with R-PTFE seat materials
• ANSI 150
• Suitable for Water, Oil, or Gas Medium Application
• Design fully complies with ASME B16.34 and API 607
• Tested and inspected in accordance with API 598
• Country of Origin: From Import (China)
