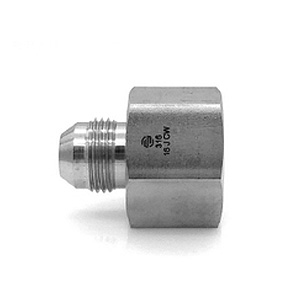

Female JIC x Male JIC Reducers/Expanders
Hydraulic Tube Fittings - JIC FLARE 37° 316 Stainless Steel Adapters - Female FJIC x Male MJIC Reducer/Expanders
Technical Information & Pressure Ratings
The hydraulic tube fittings conform to the performance requirements specified in SAE J514, SAE J518, SAE J1453, SAE J1926/ISO 11926 and related standards. The working pressure ratings listed below are based on a 4:1 design factor for minimum burst. As specified in SAE J514, these are dynamic pressure ratings and the fittings are capable of passing a cyclic endurance (impulse) test for one million cycles at 133 % of the corresponding working pressure. The rated working pressure for any fitting is based on the lowest pressure rated fitting end.
-
DescriptionSKUPrice
-
BFSS2406-06-04$11.56
-
BFSS2406-08-04$15.12
-
BFSS2406-08-06$14.50
-
BFSS2406-10-08$17.10
-
BFSS2406-12-04$25.91
-
BFSS2406-12-06$26.09
-
BFSS2406-12-08$25.38
-
BFSS2406-16-04$37.14
-
BFSS2406-16-06$37.33
-
BFSS2406-16-08$38.41
-
BFSS2406-16-12$38.75
