MJIC 45 Degree Union Elbows

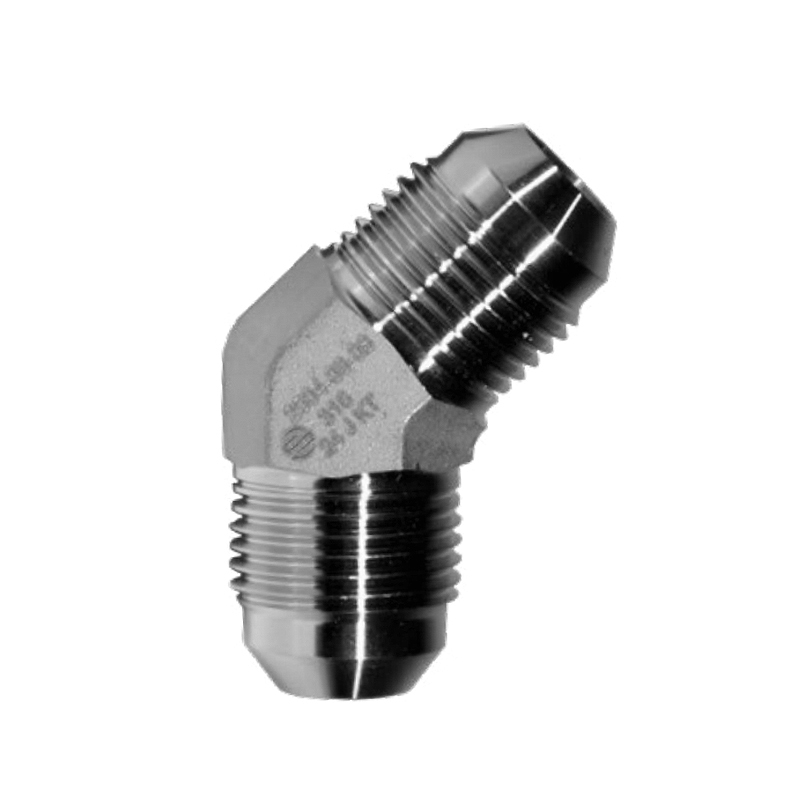

45 Degree Union Elbow - Male JIC - 316 Stainless Steel Hydraulic JIC 37° Flare Tube Fitting (SS2504)
MJIC x MJIC Union - 45 Degree Elbow
Applications: Used in marine, food processing, pharmaceutical and construction industries
JIC Threads Conform to SAE J514 Specifications
The hydraulic tube fittings represented by Stainless Adapters Inc. conform to the performance requirements specified in SAE J514, SAE J518, SAE J1453, SAE J1926/ISO 11926 and related standards. The working pressure ratings listed on each SKU are based on a 4:1 design factor for minimum burst.
- JIC Threads conform to SAE J514 specifications
- Tolerance: +/- 0.1-0.5mm on all dimensions
- End Connection: MJIC x MJIC
- Maximum Operating Temperature: 1000°F (537°C)
-
DescriptionSKUPrice
-
SS2504-04-04$16.23
-
SS2504-06-06$19.33
-
SS2504-08-08$29.03
-
SS2504-10-10$30.29
-
SS2504-12-12$52.53
-
SS2504-16-16$73.00
