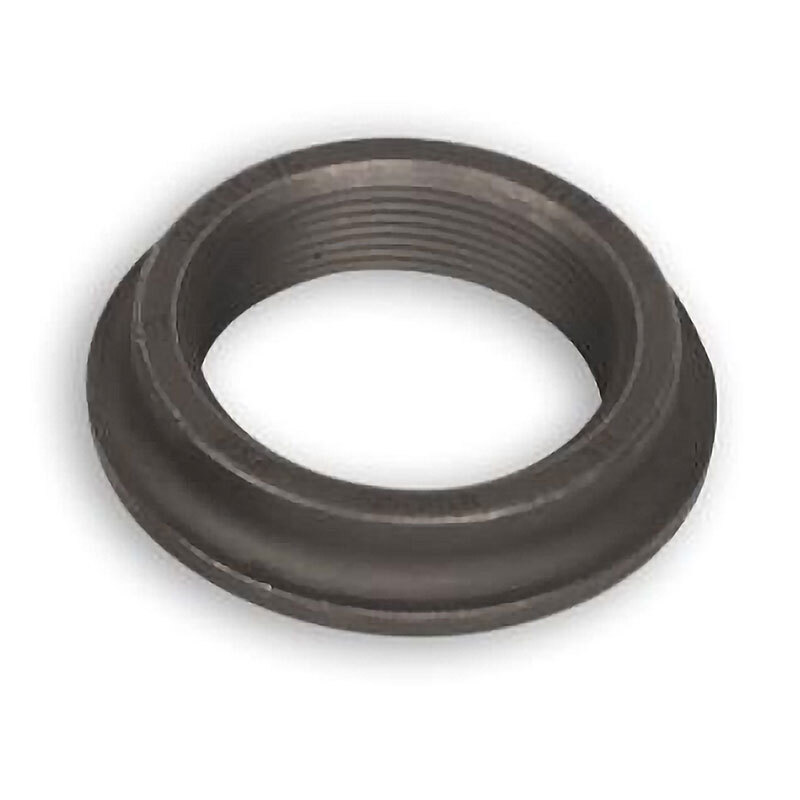

Tank Flanges - Series 250
3000# SA105N TANK FLANGES - STD FLAT TYPE W/ PILOT NPT
Tank Flanges - Series 250, Standard Flat Type with Pilot, Forged Steel are used to connect pipes to tanks or other vessels, creating a secure, leak-proof seal for piping systems. The flat design with a pilot ensures precise alignment, minimizing turbulence and flow resistance, which enhances system efficiency and longevity. These flanges are typically welded onto a hole in the tank’s flat surface, allowing for a threaded pipe connection. NPT threads on Forged Steel Fittings conform to ASME B1.20.1
- Design Spec: Manufacturer Standard
- Material: ASTM/ASME A/SA105N
- Pressure Class: 3000
- MTR Available - Ships with Order
- COC Available
- Country of Origin: South Korea
-
DescriptionSKUPrice
-
BFTF.125$11.12
-
BFTF.250$11.12
-
BFTF.375$11.41
-
BFTF.50$11.81
-
BFTF.75$13.52
-
BFTF01.0$17.46
-
BFTF01.25$21.11
-
BFTF01.5$24.37
-
BFTF02.0$30.20
-
BFTF02.5$53.06
-
BFTF03.0$63.34
-
BFTF04$93.08
