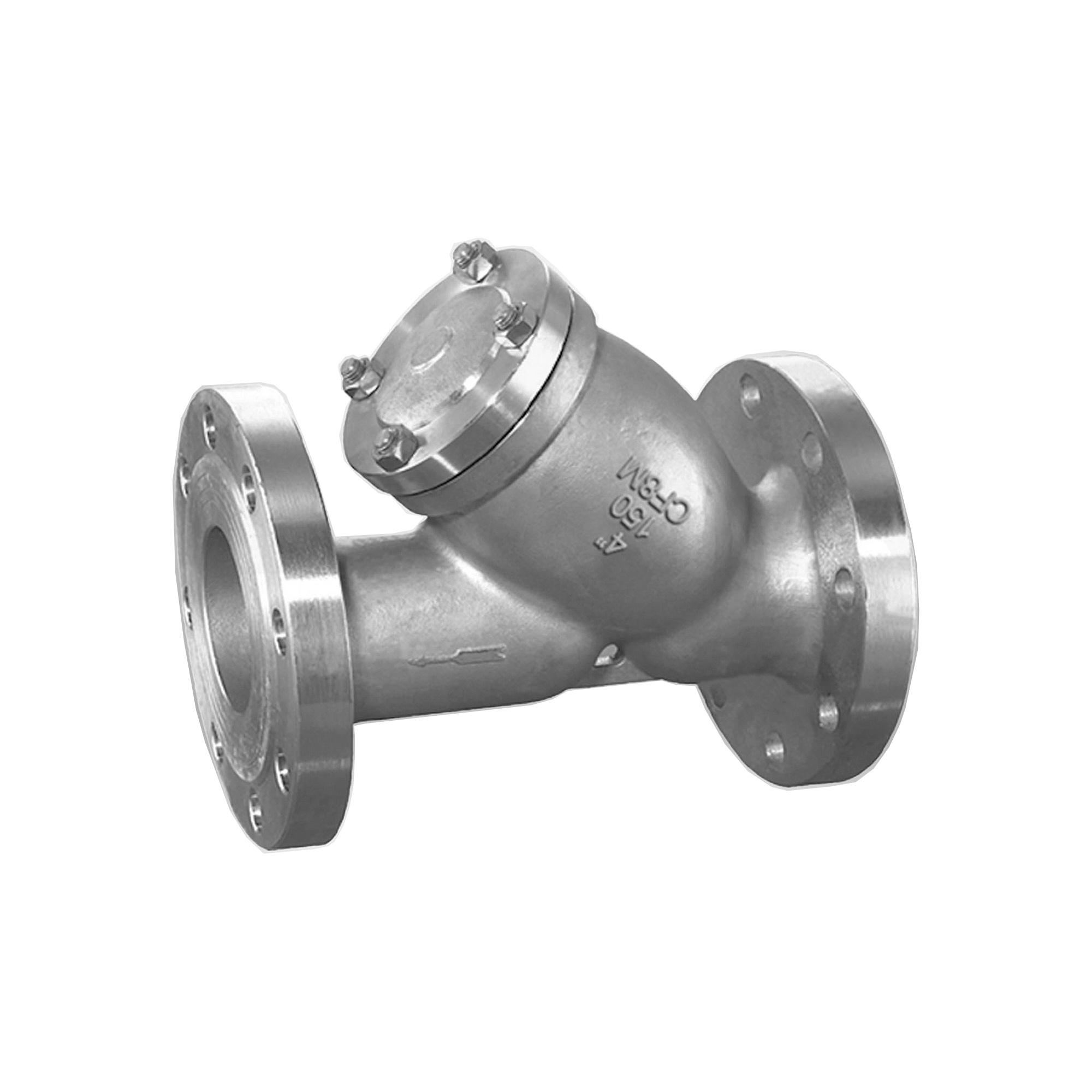

150# Stainless Steel Flanged Y-Strainers
Class 150 Flanged x Flanged End ANSI Raised Face (RF) CF8M Stainless Steel Wye Strainer Valves
ASME B16.5 / API 598 / ASME B16.34
CF8M Stainless Steel Flanged Y-Strainer, available in both Class 150# and Class 300# configurations. This Y strainer is crafted from durable CF8M stainless steel, featuring a mesh 60 screen/basket and options for various mesh sizes (20/40/60/80/100). It meets ASME B16.34 standards and undergoes rigorous testing per API 598, ensuring reliable performance in water, oil, and gas applications. With ASME B16.5 flanged end connections, it operates at Class 150# and 300# pressure ratings, handling temperatures from -20F to 320F. Ideal for industries requiring corrosion resistance and durability, such as pharmaceuticals, food processing, and chemical manufacturing.
YS41W6F/150 Flanged Wye Strainer Cut Sheet
CF8M Flanged Wye Strainer ANSI 150 Product Literature
- 316 Stainless Steel WYE Strainer
- Size: 1/2" to 8" Flanged x Flanged End
- Stainless Steel, CFM, SS Body
- Standard Screen / Basket: Mesh 60
- Design according to ASME B16.34
- Test and Inspection in accordance with API 598
- End Flange Connection ASME B16.5
- Working Pressure Class 150
- Temperature range: -20° to 320°F
- Applicable medium: Water, Oil and Gas
- Optional Mesh: 20/40/60/80/100
-
DescriptionSKUPrice
-
YS41W6F/150-50$217.06
-
YS41W6F/150-75$242.59
-
YS41W6F/150-100$280.86
-
YS41W6F/150-125$351.08
-
YS41W6F/150-150$440.47
-
YS41W6F/150-200$685.49
-
YS41W6F/150-250$809.10
-
YS41W6F/150-300$1,111.75
-
YS41W6F/150-400$1,322.44
-
YS41W6F/150-500$1,833.38
-
YS41W6F/150-600$2,682.76
-
YS41W6F/150-800$3,423.44
