1000WOG 2-PC Full Port Threaded Ball Valves

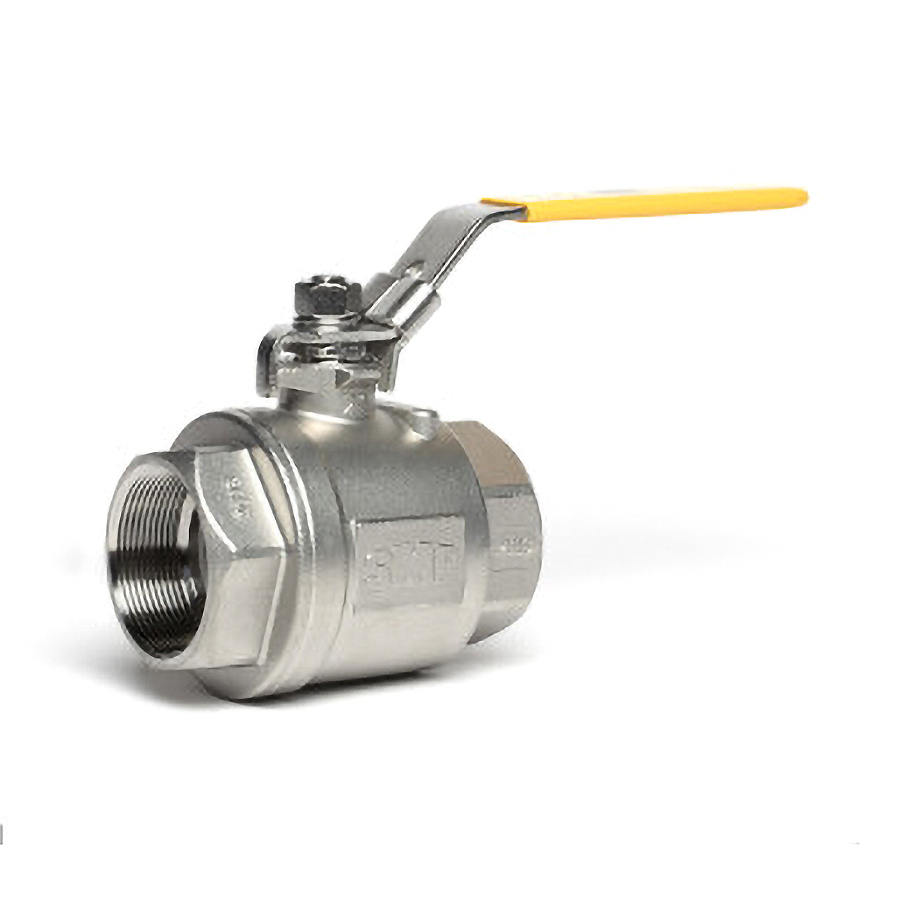

1000# WOG - RFTE Seat - 2 Piece Full Port CF8M 316 Stainless Steel Ball Valve - Locking Handle (SMP)

The valve is rated for 1000 PSI WOG (Water, Oil, Gas), indicating it can handle high-pressure applications up to 1000 PSI at ambient temperatures. This makes it suitable for demanding environments. The full port design ensures minimal flow restriction, as the ball's bore matches the pipe's internal diameter, allowing maximum flow capacity and reduced pressure drop. The valve consists of two body pieces, making it easier to assemble, disassemble, and maintain compared to a one-piece valve. This design is common for industrial applications requiring periodic maintenance.

Datasheet / Dimensions

• Full Port
• 2-Piece Design
• Working Pressure: 1000 WOG
• Working Temperature: -4° F through 392° F
• Locking Device: The lever handle can often be locked in the open or closed position, enhancing safety by preventing unauthorized or accidental operation
• Drilled and Tapped Mounting Pad
• Threaded Ends Conform to ASME/ANSI B21.20.1 (NPT)
• RTFE Seat
• Blow-Out Proof Stem
• Shell test and seat to ASMEB16.34
