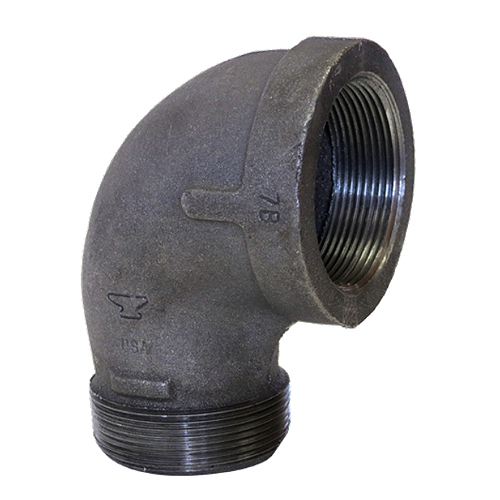

2-1/2 in. NPT Threaded - 90 Degree Street Elbow - DOMESTIC - 150# Black Malleable Iron Pipe Fitting - UL/FM

(No reviews yet) Write a Review
SKU:
BF310017405
MPN:
310017405
Availability:
Available
Weight:
4.01 LBS
$103.08

Description


Specifications / Applications:

FIG 1101 1102 90 Degree Elbows - ANVIL Fittings - DOMESTIC

Anvil International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes.
Every fitting is manufactured and tested to meet Anvil’s strict quality standards.
All Anvil Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39.
All elbows and tees 3/8" (10 DN) and larger are 100% gas tested at a minimum of 100 PSI. (6.9 bar)

Application: Air, Natural Gas, Non-Potable Water, Oil, Steam, Commercial, Residential
Pipe Fitting Material: Malleable Iron
Specific Fitting Shape: 90 Degree Elbow - Straight
Fitting Schedule/Class: Class 150
Fitting Connection Type: FNPT x MNPT (Female NPT x Male NPT)
First size denotes female end.
Standards: UL Listed / FM Approved / ASME B16.3 / NSF 61 Certified / ASTM: ASTM A-197 / ASME B1 20.1
Pipe Fitting Schedule/Pressure Class: Class 150
Saturated Steam Pressure: 150 psi @ 350 Degrees F
Temp. Range: -20 Degrees to 350 Degrees F
Maximum Operating Pressure: 300 psi @ 150 Degrees F
Includes Pre-Applied Thread Sealant: No
Finish: Black
For Use with Pipe Schedule: 40
For Use with Flanges/Fittings: Class 150
NSF: NSF 61 CERTIFIED
Country Of Origin:

USA - Domestic

Category Classification:
Pipe Fittings / Malleable Iron Pipe Fittings / Domestic Malleable Iron Fittings / MI Threaded Fittings Class 150
View AllClose

Warranty Information

Quality promiseQuality Guarantee & Product Warranty
  • You are entitled to quality products. If you find that the quality of your product is unacceptable?contact us.
  • Our products are warranted?to be free of defects in material or workmanship upon delivery.
  • Upon receiving the return shipment, inspection and confirmation of defective product - we will replace or refund your order.
  • No warranty is included against expense for removal, re-installation or other consequential damages arising from any defect.
  • This warranty?is the sole warranty of QMC Technologies, Inc and its subsidiaries.
  • Any other warranties expressed, implied in law or implied in fact, including any warrants of merchantability and fitness for use are hereby specifically excluded.

    Dimensions / Images:
  • Dimensions provided are for reference only and subject to change.
  • All images provided are a generic product image (not size specific) to give customers a image reference when ordering.
Returns: Click Here

Shipping Policy
: View Shipping Policy Here
View AllClose

Additional Information

Size (inches):
2.50 (2-1/2")
Material Type:
Black Malleable Iron
Product Type:
90Ā° Street Elbow
Category Type:
Pipe Fittings
Pressure Rating (psi):
150
End Connection:
NPT
Specifications or Standards:
UL/FM
Specifications or Standards:
NSF 61
Weight (lbs):
4.01
Additional:
Domestic - Made in USA
