Anvil

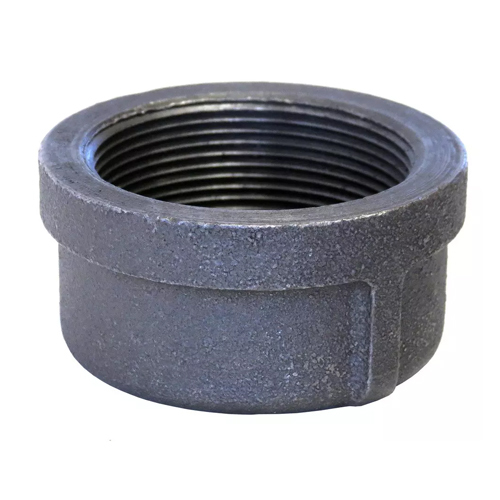

4 in. NPT Threaded - Round Cap - DOMESTIC - 150# Black Malleable Iron Pipe Fitting - UL/FM
(No reviews yet)
Write a Review
- SKU:
- BF318901006
- UPC:
- 690291359910
- MPN:
- 318901006
- Availability:
- Available
- Weight:
- 4.54 LBS
Description
Specifications / Applications:
FIG 1124 1124 Cap
- Anvil International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes.
- Every fitting is manufactured and tested to meet Anvil’s strict quality standards.
- All Anvil Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39.
- All elbows and tees 3/8" (10 DN) and larger are 100% gas tested at a minimum of 100 PSI. (6.9 bar)
| Application: | Air, Natural Gas, Non-Potable Water, Oil, Steam, Commercial, Residential, Fire Protection |
| Pipe Fitting Material: | Malleable Iron |
| Specific Fitting Shape: | Cap |
| Fitting Schedule/Class: | Class 150 |
| Fitting Connection Type: | Female NPT |
| Standards: | UL Listed / FM Approved / ASME B16.3 / NSF 61 Certified / ASTM: ASTM A-197 / ASME B1 20.1 |
| Pipe Fitting Schedule/Pressure Class: | Class 150 |
| Saturated Steam Pressure: | 150 psi @ 350 Degrees F |
| Temp. Range: | -20 Degrees to 350 Degrees F |
| Maximum Operating Pressure: | 300 psi @ 150 Degrees F |
| Includes Pre-Applied Thread Sealant: | No |
| Finish: | Black |
| For Use with Pipe Schedule: | 40 |
| For Use with Flanges/Fittings: | Class 150 |
| NSF: | NSF 61 CERTIFIED |
