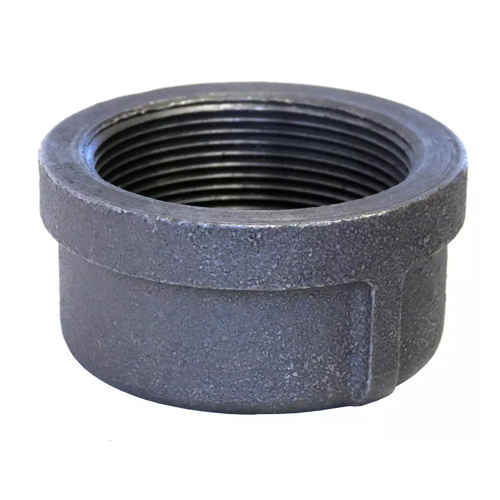

3/4 in. NPT Threaded - Round Cap - DOMESTIC - 150# Black Malleable Iron Pipe Fitting - UL/FM

(No reviews yet) Write a Review
SKU:
BF318900560
MPN:
318900560
Availability:
Available
Weight:
0.22 LBS
$5.63

Description


Specifications / Applications:

FIG 1124 1124 Cap

  • Anvil International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes.
  • Every fitting is manufactured and tested to meet Anvil’s strict quality standards.
  • All Anvil Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39.
  • All elbows and tees 3/8" (10 DN) and larger are 100% gas tested at a minimum of 100 PSI. (6.9 bar)
Application: Air, Natural Gas, Non-Potable Water, Oil, Steam, Commercial, Residential, Fire Protection
Pipe Fitting Material: Malleable Iron
Specific Fitting Shape: Cap
Fitting Schedule/Class: Class 150
Fitting Connection Type: Female NPT
Standards: UL Listed / FM Approved / ASME B16.3 / NSF 61 Certified / ASTM: ASTM A-197 / ASME B1 20.1
Pipe Fitting Schedule/Pressure Class: Class 150
Saturated Steam Pressure: 150 psi @ 350 Degrees F
Temp. Range: -20 Degrees to 350 Degrees F
Maximum Operating Pressure: 300 psi @ 150 Degrees F
Includes Pre-Applied Thread Sealant: No
Finish: Black
For Use with Pipe Schedule: 40
For Use with Flanges/Fittings: Class 150
NSF: NSF 61 CERTIFIED
Country Of Origin:

USA - Domestic

Category Classification:
Pipe Fittings / Malleable Iron Pipe Fittings / Domestic Malleable Iron Fittings / MI Threaded Fittings Class 150
View AllClose

Warranty Information

Quality promiseQuality Guarantee & Product Warranty
  • You are entitled to quality products. If you find that the quality of your product is unacceptable?contact us.
  • Our products are warranted?to be free of defects in material or workmanship upon delivery.
  • Upon receiving the return shipment, inspection and confirmation of defective product - we will replace or refund your order.
  • No warranty is included against expense for removal, re-installation or other consequential damages arising from any defect.
  • This warranty?is the sole warranty of QMC Technologies, Inc and its subsidiaries.
  • Any other warranties expressed, implied in law or implied in fact, including any warrants of merchantability and fitness for use are hereby specifically excluded.

    Dimensions / Images:
  • Dimensions provided are for reference only and subject to change.
  • All images provided are a generic product image (not size specific) to give customers a image reference when ordering.
Returns: Click Here

Shipping Policy
: View Shipping Policy Here
View AllClose

Additional Information

Size (inches):
.750 (3/4")
Material Type:
Black Malleable Iron
Product Type:
Cap
Category Type:
Pipe Fittings
Pressure Rating (psi):
150
End Connection:
NPT
Specifications or Standards:
UL/FM
Specifications or Standards:
NSF 61
Weight (lbs):
0.22
Additional:
Domestic - Made in USA
