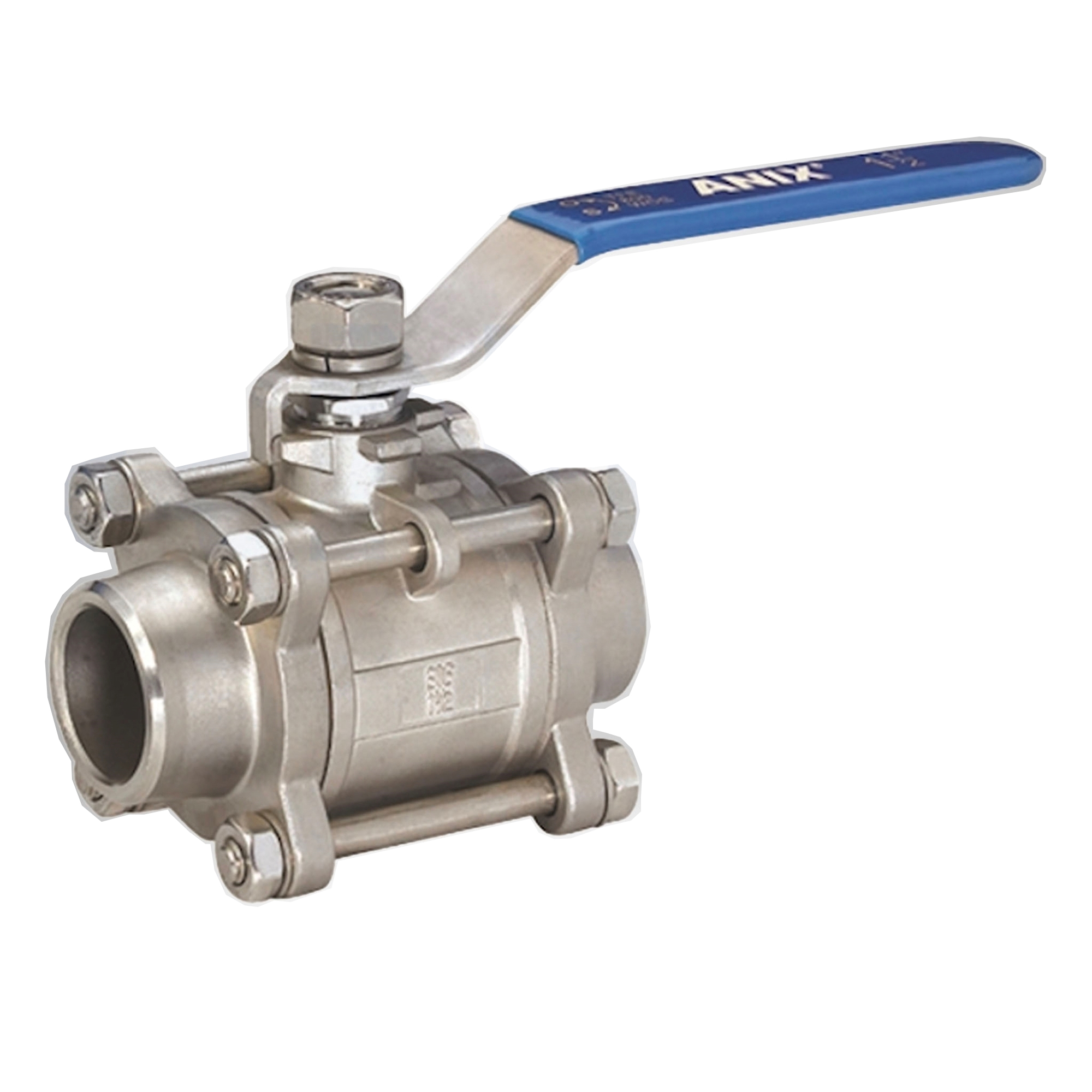

Butt Weld 3 Piece Ball Valves 1000 WOG
CAD Drawing Stainless Steel Butt Weld End 3-Piece Full Port Ball Valve 1000 WOG with direct mounting pad ISO 5211 manufactured from high quality 316 stainless steel material. Available only in R-PTFE. The valve with butt welding end connection ensures no accidental leakage.
- Investment Casting Stainless Steel Body
- Full Port / Full Bore / Direct Mount
- Butt Welding end Connection
- Lockable Handle
- Blow-Out-Proof Stem Design
- Available in PTFE, R-PTFE, or High-Temp PTFE seat materials
- Working Pressure of 1000 Psi
- For Water, Oil, or Gas Medium Application
- Design fully complies with ASME B16.34
- Tested and Inspected in accordance with API 598
- 316 Stainless Steel Body
- Size: 1/4" to 4"
-
DescriptionSKUPrice
-
BV63R6B/1000-25$44.11
-
BV63R6B/1000-35$44.11
-
BV63R6B/1000-50$44.11
-
BV63R6B/1000-75$59.41
-
BV63R6B/1000-100$78.84
-
BV63R6B/1000-125$162.91
-
BV63R6B/1000-150$238.23
-
BV63R6B/1000-200$238.23
-
BV63R6B/1000-250$476.31
-
BV63R6B/1000-300$705.62
-
BV63R6B/1000-400$1,005.79
