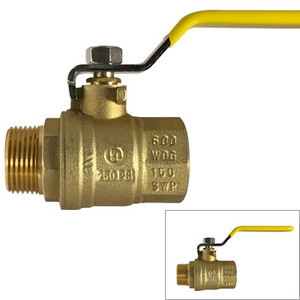

1/4 in. 600 WOG, Male x Female Full Port Forged Brass Ball Valves

(No reviews yet) Write a Review
SKU:
BFO948-170
UPC:
948-170
Availability:
Available
Weight:
0.02 LBS
$6.83
Frequently bought together:

Description

  • Size: 1/4"
  • NPT: 1/4-18
  • UL Approved

PDF downloadsView Catalog & Specifications

  • Solid chrome plated brass ball
  • Suitable for full range of liquids and gases.
  • Minimal pressure drop due to large full size ports.
  • Bottom loaded, pressure retaining stem.
  • Pressure rated at 600psi (42 bars) WOG ( non-shock)
  • 150psi (10.34 bars) saturated steam.
  • Virgin PTFE stem packing seal, thrust washer and seats.
  • Yellow vinyl insulator on heavy duty plated carbon steel handles.
  • Fast 1/4 turn open or close operation.
  • Flow both directions.
  • Low operating torque
  • Adjustable stem packing gland.
  • Generic Handles
  • Maximum operating temperature: 248°F (120°C)
  • Minimum operating temperature: -20°F (-40°C)
  • Each valve individually tested.
  • Forged Brass - for more strength.
  • Threaded ends to ANSI B1.20.1
  • Hard chromium plated solid ball
  • Bottom entry, blow-out proof stem.
  • Made in China
View AllClose

Additional Information

Size (inches):
.250 (1/4")
Material Type:
Forged Brass
Product Type:
Ball Valve
Category:
Industrial Valves
End Connection:
Male x Female
Port Type:
Full Port
Handle Type:
Generic
WOG Rating (psi):
600
Specifications or Standards:
UL
Weight (lbs):
0.02
