BFO Select

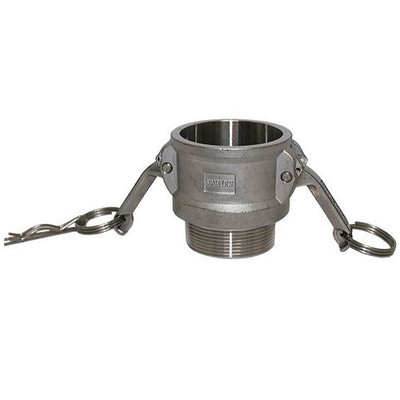

1 in. Female Coupler x Male NPT Thread - Type B - 316 Stainless Steel Camlock
(No reviews yet)
Write a Review
- SKU:
- BFOB100-SS
- Availability:
- Available
- Weight:
- 0.55 LBS
Description
Applications / Specifications:
Type B couplers are generally used with the same size Type F adapters. Type A and Type E adapters are compatible, as well as the Type DP (Dust Plug).
Type B Female Coupler is a Female Cam and Groove x Male NPT Thread
Type B Female Coupler is a Female Cam and Groove x Male NPT Thread
- The coupler portion will connect to a Male Adapter.
- The threaded portion will connect to a Female NPT Thread.
- Available in 304 and 316 stainless steel
Gaskets:
Stainless steel camlocks come standard with a Buna gasket. Additional gaskets materials can be found and purchased here.
End Connection:
Female Cam and Groove x Male NPT Thread
Size Range:
1/2" to 6"
Additional:
CAMLOCK FITTINGS WORKING PRESSURES MAX PSI (BAR)
| Material Type | 1/2" | 3/4"- 2"Â | 2-1/2" | 3" | 4" | 5"- 6" |
| Aluminum | 150 (11) | 250 (18) | 150 (11) | 125 (9) | 100 (7) | 75 (5) |
| Brass | 150 (11) | 250 (18) | 150 (11) | 125 (9) | 100 (7) | 75 (5) |
| Stainless Steel | 150 (11) | 250 (18) | 225 (16) | 200 (14) | 100 (7) | 100 (7) |
| Polypropylene | 75 (5) | 100 (7) | Â | 50 (4) | Â | Â |
PDF / Specs / Brochure:Warranty Information
Quality Guarantee & Product Warranty
- You are entitled to quality products. If you find that the quality of your product is unacceptable contact us.
- Our products are warranted to be free of defects in material or workmanship upon delivery.
- Upon receiving the return shipment, inspection and confirmation of defective product - we will replace or refund your order.
- No warranty is included against expense for removal, re-installation or other consequential damages arising from any defect.
- This warranty is the sole warranty of QMC Technologies, Inc and its subsidiaries.
- Any other warranties expressed, implied in law or implied in fact, including any warrants of merchantability and fitness for use are hereby specifically excluded.
Images:
- All images provided are a generic product image for reference and are not size specific.
- We do not recommend you make your purchases based on provided product images.
- All critical size information is listed in the product name and description.
Additional Information
Size (inches): |
1.00 (1") |
Category Type: |
Camlocks |
Material Type: |
316 Stainless Steel |
Product Type: |
Type B Coupler |
Weight (lbs): |
0.55 |
Additional: |
From Import |
