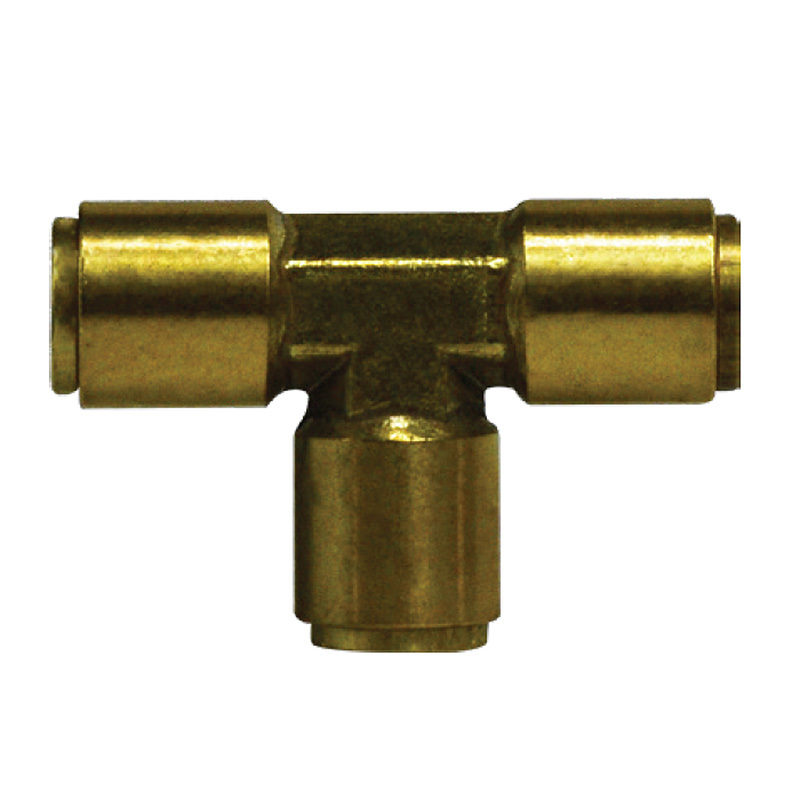

D.O.T. PTC Union Tees

D.O.T. Push-to-Connect Brass Fittings - Union Tees

Regulatory: Meets D.O.T. FMVSS 571.106 & SAE J1131 Air Brake System Requirements

End Connection: PTC x PTC x PTC Ends

DOT Fittings are constructed with an all brass captive eyelet which allows for maximum flow. The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing. All male threads have a pre-applied Teflon® based pipe sealant to provide for easy assembly and leak proof seal. Engineering file/drawing available upon request for all items with industry crossovers listed.

Catalog / Data Sheet

• Materials:
  • Brass
  • "O" Ring: Buna - Nitrile (90 Durometer)
  • EP (Ethylene Propylene)
• Working Pressures and Temperature Ranges:
  • Vacuum to 150 PSI -40°F to 200°F ( -40°C to +93°C )
