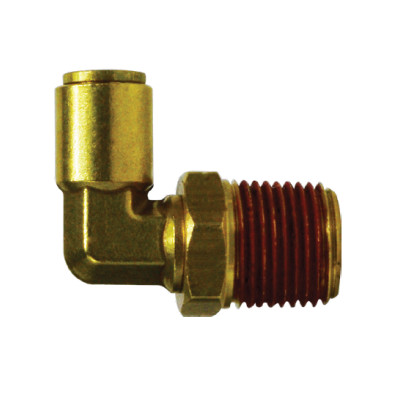

3/4 in. Tube OD x 1/2 in. MNPTF Threaded - 90 Degree Male Swivel Elbow - D.O.T. Push to Connect Brass Fitting
(No reviews yet)
Write a Review
- SKU:
- 691208S
- Availability:
- Available
- Weight:
- 0.50 LBS
Description
Applications:
- Meets D.O.T. FMVSS 571.106 SAE J1131 Air Brake System Requirements
- DOT Fittings are constructed with an all brass captive eyelet which allows for maximum flow. The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing. All male threads have a pre-applied Teflon based pipe sealant to provide for easy assembly and leak proof seal.
- Materials:
Brass
"O" Ring: Buna - Nitrile (90 Durometer)
EP (Ethylene Propylene) - Working Pressures & Temperature Ranges Vacuum to 150 PSI -40°F to 200°F ( -40°C to +93°C )
Product Data:
| Additional Information : 1.32 x 2.2 in Center to End |
| Connection Size 1 : 3/4 in |
| Connection Size 2 : 1/2 in |
| Connection Type 1 : Push-to-Connect |
| Connection Type 2 : Male NPTF Swivel |
| Dimensions : 2.56 in L |
| Fitting Type : 90-deg Elbow |
| Hex Size : 1-1/16 in |
| Material : Brass |
| Pressure Rating : 150 psi |
| Temperature Rating : -40 to 200 ?F |
| Thread Size : 1/2 - 14 |
Industry Specific Crossovers:
| 2569-1208 |
95411449M
|
|
121030.79
|
969-12-8PXDOTS
|
|
169PMT-12-8
|
AQ69-DOTS-12X8
|
|
1869x12S
|
DQ69DOTS-12X8
|
|
269PCS-12X8
|
PC1469SW12D
|
|
269PPSDOT-12D
|
PC1469SW-12D
|
|
269PPSDOT-12D-Y
|
PL1369-12D
|
|
5128299
|
PP69SJ-DOT
|
|
91387
|
S269PMT-12-8
|
Working Pressures & Temperature Ranges:
Vacuum to 150 PSI
-40°F to 200°F ( -40°C to +93°C )
-40°F to 200°F ( -40°C to +93°C )
Conformance:
Meets D.O.T. FMVSS 571.106
SAE J1131 Air Brake System Requirements
SAE J1131 Air Brake System Requirements
PDF / Specs / BrochureAdditional:
From Import
Additional Information
Size (inches): |
.750 (3/4") |
Size (inches): |
.500 (1/2") |
Material Type: |
Brass |
Product Type: |
Union |
Category Type: |
D.O.T. Push-In Fittings |
Category Type: |
D.O.T. Push-to-Connnect Fittings |
Specifications or Standards: |
SAE J1131 |
Specifications or Standards: |
D.O.T. FMVSS 571.106 |
End Connection: |
Tube OD x MNPTF |
Additional: |
From Import |
