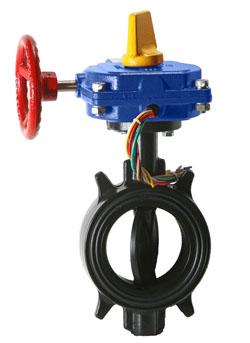

HPW Ductile Wafer 300 PSI Butterfly Valves

View Drawing & Technical/Material Specifications

• Connections: Wafer Ends (ANSI Class 125)
• Sizes: 2-1/2", 3", 4", 6", 8"
• Approvals: UL, ULC, FM, and California State Fire Marshal
• Max. Working Pressure: 300 PSI
• Max. Test Pressure: 600 PSI
• Max. Working Temperature: 250°F (120°C)
• Application: Indoor and Outdoor Use
• Double-Seal Disc; Resilient EPDM Coating
• Factory-Installed Supervisory Tamper Switch Assembly
